MR8903
MR8903
Hioki
Input Module for MR8875
This product is available in 5-7 weeks
Input Module for MR8875Key Features
- Channels: 4, selectable for voltage/strain measurement
- Voltage Measurement Range: 50 µV to 1000 µV/div
- Strain Measurement Range: 20 µε to 1000 µε/div
- Input Connectors: Strain gauge converter, Bridge resistance: 120 Ω to 1 kΩ
- Max Sampling Rate: 200 kS/s
- Low-pass Filter: 5/10/100 Hz, 1 kHz, OFF
- Resolution: 1/1250 of measurement range (16-bit A/D converter)
- Max Allowable Input: 5 V DC
- Dimensions: 119.5 mm (W) × 18.8 mm (H) × 151.5 mm (D)
- Weight: 173 g

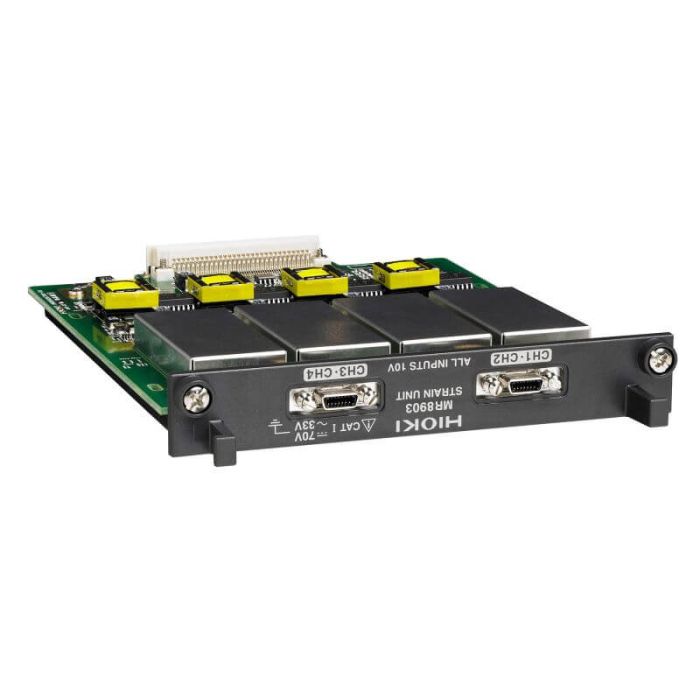

The Hioki MR8903 is a 4-channel input module designed for voltage and strain measurements, ideal for precision data acquisition in industrial and research environments. It supports a wide range of strain gauges and offers electronic auto-balancing, ensuring high accuracy in both dynamic and static measurements. The module features customizable low-pass filters and provides high-resolution data capture with a 16-bit A/D converter.
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
