Hioki

Input Module for MR8875

This product is available in 5-7 weeks

Input Module for MR8875

Key Features

  • Channels: 2, switchable between instantaneous value and AC RMS value
  • Input terminals: Banana jacks (CAT II 1000 V AC & DC, CAT III 600 V AC & DC)
  • Measurement range: 500 mV to 50 V/div, 7 ranges
  • Low-pass filter: 5/50/500/5 kHz, OFF
  • Resolution: 1/1250 of the measurement range (16-bit A/D converter)
  • Sampling rate: 500 kS/s (simultaneous for 2 channels)
  • Accuracy: ±0.5% f.s. (with 5 Hz filter ON)
  • RMS accuracy: ±1.5% f.s. (30 Hz to 1 kHz), ±3% f.s. (1 kHz to 10 kHz)
  • Input coupling: DC/AC RMS/GND
  • Maximum input: 1000 V DC, 700 V AC
  • Dimensions: 119.5 mm × 18.8 mm × 151.5 mm
  • Weight: 185 g

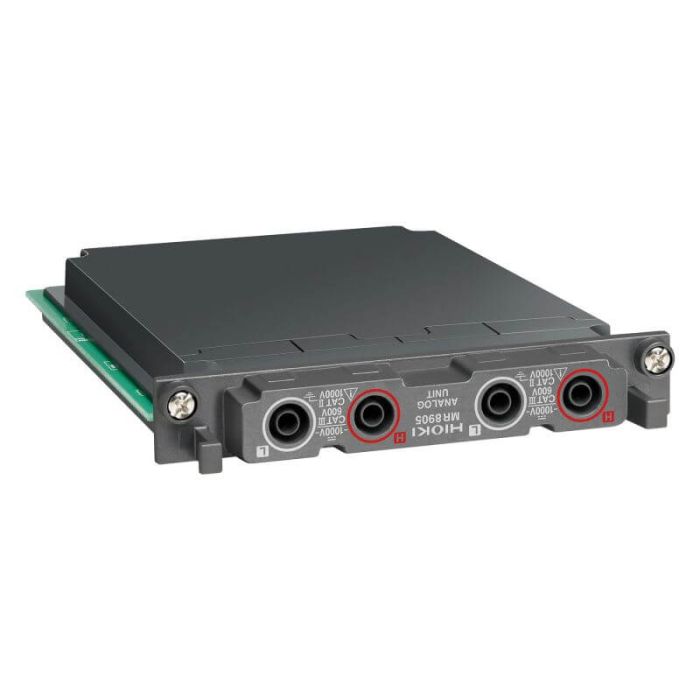

The Hioki MR8905 is a 2-channel input module designed for high-precision voltage and RMS measurements. It allows switching between instantaneous values and AC RMS values, making it ideal for applications in power analysis and waveform monitoring. With a high sampling rate and integrated low-pass filter, the module ensures accurate data acquisition.

In stock
£1,381.36
More Information
Attribute Value
Data Sheet Click here to view
