Tektronix MSO2002B Oscilloscope | APC Technology Group

MSO2002B

MSO2002B

Tektronix

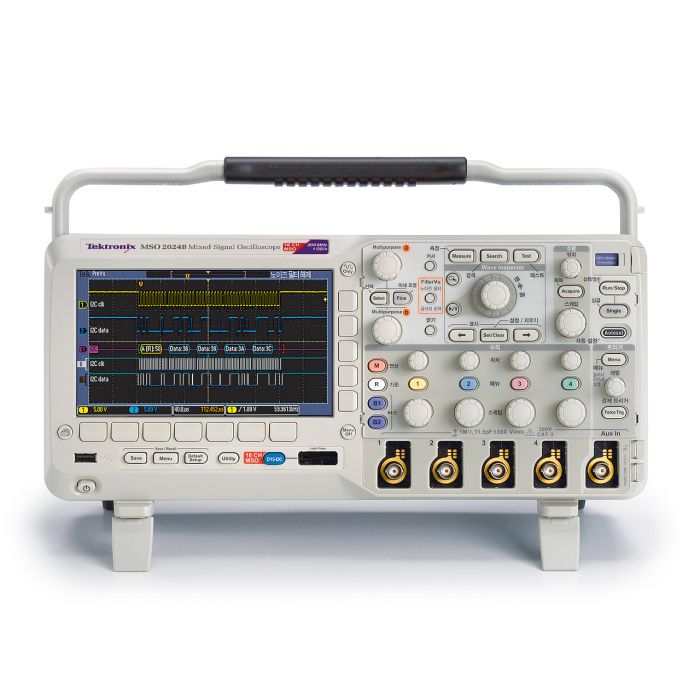

70 MHz, 1 GS/s, 1 M record length, 2+16 channel mixed-signal oscilloscope

Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the MSO/DPO2000B Mixed Signal Oscilloscope Series from Tektronix delivers advanced debug features at an entry-level price. Quickly find and diagnose problems in complex designs with up to 20 channels for analyzing analogue and digital signals. With a deep record length of 1 Mpoints standard on all channels, the MSO/DPO2000B lets you capture long windows of signal activity while maintaining fine timing resolution.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Manufacturer Product Family MSO2000B / DPO2000B Mixed Signal Oscilloscope
Key Features

Key performance specifications

  • 200, 100, 70 MHz bandwidth models
  • 2 and 4 analogue channel models
  • 16 digital channels (MSO series)
  • 1 GS/s sample rate on all channels
  • 1 megapoint record length on all channels
  • 5,000 wfm/s maximum waveform capture rate
  • Suite of advanced triggers

Key features

  • Wave Inspector® controls provide easy navigation and automated search of waveform data
  • FilterVu™ variable low-pass filter allows for removal of unwanted signal noise while still capturing high-frequency events
  • 29 automated measurements, and FFT analysis for simplified waveform analysis
  • TekVPI® probe interface supports active, differential, and current probes for automatic scaling and units
  • 7 in. (180 mm) wide-screen TFT-LCD color display
  • Small footprint and lightweight - only 5.3 in. (134 mm) deep and 7 lb. 14 oz. (3.6 kg)
  • Five-year warranty

Connectivity

  • USB 2.0 host port on the front panel for quick and easy data storage
  • USB 2.0 device port on rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer
  • Optional 10/100 Ethernet port for network connection and video-out port to export the oscilloscope display to a monitor or projector

Optional serial triggering and analysis

  • Automated serial triggering, decode, and search options for I2C, SPI, CAN, LIN, and RS-232/422/485/UART
Sample Rate 1 GS/s
Record Length 1 M points
Bandwidth 70 MHz
Channels 2 + 16
