MSO22

MSO22

Tektronix

Mixed Signal Oscilloscope: 2 analog channels, 2.5 GS/s sample rate, 10 Mpts record length

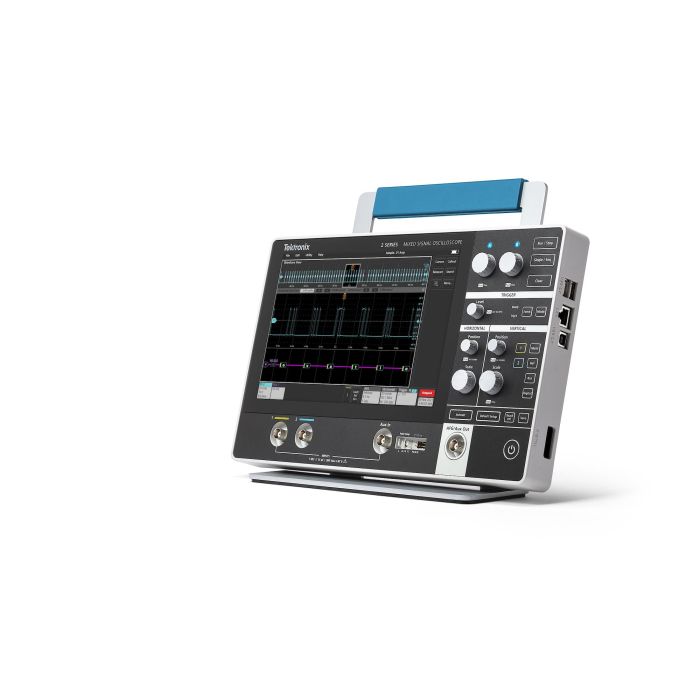

main product photo

The 2 series MSO unlocks more space on your bench without compromising performance.

The thin, portable, and lightweight 2 Series MSO offers bandwidths from 70 MHz to 500 MHz and 2.5 GS/s max sample rate.

Available with either two or four channels, the 2 Series MSO features a capacitive touchscreen, and can be equipped with several options incl. 16-channel MSO, 50 MHz function generator, and 4-bit pattern generator.

An optional battery pack lets you take it easily from your bench to the field or wherever your measurements take you.



• Thin, Lightweight Design • Software Enabled
• Battery Powered • Serial Decode
• Modern Touchscreen Display • All-in-One Convenience
• Full Featured Analysis • VESA Mount and Accessories

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more
[email protected]
+44 330 313 3220
More Information
Attribute Value
Manufacturer Product Family 2 Series MSO Mixed Signal Oscilloscope
Key Features
  • Bandwidth: 70MHz/100MHz/200MHz/350MHz/500MHz
  • Sampling Rate: 2.5 GS/s Half channels and 1.25 GS/s All channels
  • Record Length: 10 M points per channel
  • Display Type: • 10.1-inch TFT color • WXGA (1280 x 800) resolution • Capacitive (multi-touch) touchscreen
  • Resolution: 8 bit
  • Ports: 2 USB Hot, 1 USB Device, 1 Ethernet
  • Standard Warranty: 1 year
  • Rackmountable (5U)
Sample Rate 2.5 GS/s
Record Length 10 M Points
Bandwidth 70 MHz to 500 MHz
Channels 2
Whats Included
  • One TPP0200 200 MHz, 10x voltage probe per channel
  • Instrument stand
  • Installation and safety manual (translated in English, Japanese, and Simplified Chinese)
  • Embedded help
  • External power supply
  • Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
  • One-year warranty covering all parts and labor cost on the instrument and the included probes and probes
  • One-year software maintenance that provides access to new firmware releases with updates
Dimensions Instrument only
Height 210 mm (8.26 in)
Width 344 mm (13.54 in)
Depth 40.4 mm (1.59 in)
Instrument with battery pack
Height 210 mm (8.26 in)
Width 344 mm (13.54 in)
Depth 78 mm (3.07 in)
Bandwidth Option
  • 70 MHz
  • 100 MHz
  • 200 MHz
  • 350 MHz
  • 500 MHz
Add Functionality

2-P6139B
Add 500 MHz, 10x probes (one per channel)

2-MSO
Add MSO function with 16 digital channels; includes P6316 digital probe and accessories

2-BATPK
Battery pack with 2 battery slots and 1 battery (ships with instrument) for use with 2 Series oscilloscopes
Add Instrument Software

2-SOURCE
AFG (Arbitrary Function Generator) and DPG (Digital Pattern Generator)

2-SERIAL
I²C, SPI, UART, CAN, CAN-FD, SENT, LIN serial trigger and analysis

2-ULTIMATE
2-SOURCE, 2-SERIAL
Series 2 Series Portable MSO
More Information
Attribute Value
Applications
  • Embedded design
  • Education
  • Automotive
  • Manufacturing
More Information
Attribute Value
Data Sheet Click here to view
