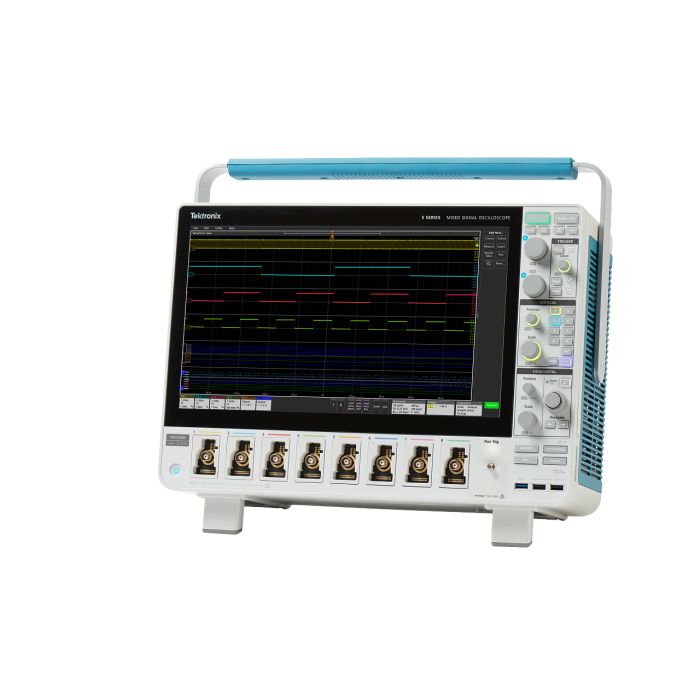

MSO58B

Input channels

• 8 FlexChannel® inputs
• Each FlexChannel provides:
• One analogue signal that can be displayed as a waveform view, a spectral view, or both simultaneously
• Eight digital logic inputs with TLP058 logic probe

Bandwidth (all analogue channels)

• 350 MHz, 500 MHz, 1 GHz, 2 GHz (upgradable)

Sample rate (all analogue / digital channels)

• Real-time: 6.25 GS/s
• Interpolated: 500 GS/s

Record length (all analogue / digital channels)

• 62.5 Mpoints standard
• 125, 250, 500 Mpoints, (optional)

Waveform capture rate

• >500,000 waveforms/s

Vertical resolution

• 12-bit ADC
• Up to 16-bits in High Res mode

Standard trigger types

• Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)

Standard analysis

• Cursors: Waveform, V Bars, H Bars, V&H Bars
• Measurements: 36
• Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
• FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second
• Plots: Time Trend, Histogram, Spectrum and Phase Noise
• Math: Basic waveform arithmetic, FFT, and advanced equation editor
• Search: Search on any trigger criteria
• Jitter: TIE and Phase Noise
