MSOX2012A

MSOX2012A

Keysight Technologies

Oscilloscope, mixed signal, 2+8 channel, 100MHz

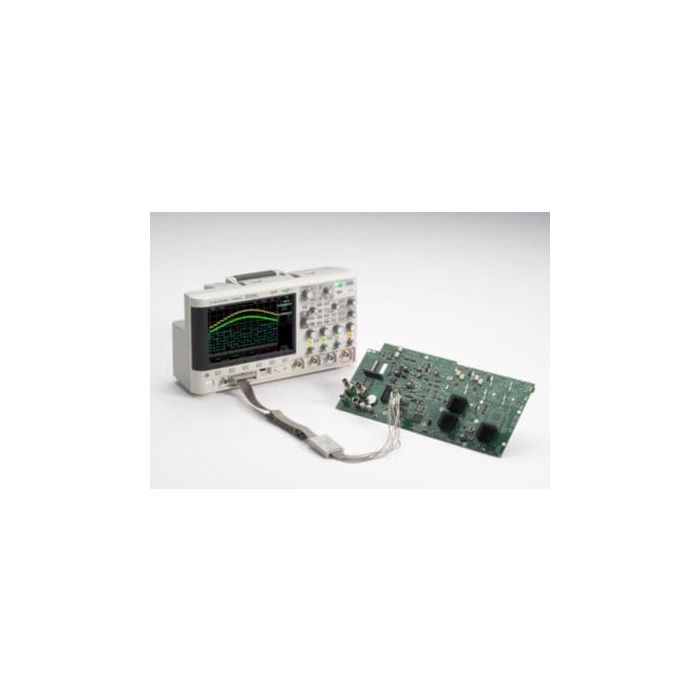

main product photo
InfiniiVision 2000 X-Series 100 MHz oscilloscope provides 2 analog channels plus 8 digital channels, 100 kpts memory, and 200,000 waveforms/sec update rate
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Form Mixed Signal
Series 2000 X-Series
Bandwidth 100 MHz
Channels 2 + 8
Whats Included
  • 3-year warranty (90 days for unserialized accessories such as passive probes)
  • Certificate of Calibration, 2-year calibration interval
  • One N2894A 700 MHz passive probe (10:1 attenuation) per channel
  • N2756-60001 16-digital-channel MSO cable per oscilloscope
  • Localized interface, front panel overlay and built-in help system in English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
  • Localized power cord
  • Front panel cover
  • Documentation CD containing localized user’s guide, service guide, and programmer’s manual
ADC Bits 8 bits
Max Memory Depth 4 Mpts
Max Sample Rate 2 GSa/s
Bandwidth Upgrades Available
Display Size 12.1-inch capacitive touch screen
Special Triggers
  • Touch Zone Trigger
  • Edge
  • Pulse width
  • Video
  • Protocol decodes
  • Zone touch
  • Edge then edge
  • Pattern
  • Runt pulse
  • Rise/fall time
  • Nth edge burst
  • Setup and hold
Waveform Update Rate 1,000,000 wfms/sec
Built In Instruments (Optional) Digital Channels, Digital Channels, 20 MHz Func Gen, 20 MHz Func Gen, 5-digit Counter, 5-digit Counter, 3-digit DVM, 3-digit DVM
Protocol Trigger & Decodes Optional&&I²C, SPI, UART and CAN, LIN (optional)
Range InfiniiVision
Key Features

Keysight MSOX4052A Key Features:

  • 500 MHz
  • 2 analogue plus 16 digital channels
  • Easily view signals on the large 12.1-inch capacitive touch screen
  • Isolate signals in seconds with exclusive Zone touch triggering
  • Capture more data with 4 Mpts memory and standard segmented memory
  • See more signal detail with 1,000,000 wfms/s update rate
  • Expand your measurement capabilities with full upgradability: Add bandwidth, dual-channel 20 MHz arbitrary waveform generator, 3-digit DVM, serial trigger and analysis, and mask testing at any time
More Information
Attribute Value
Data Sheet Click here to view
