MSOX4024A

MSOX4024A

Keysight Technologies

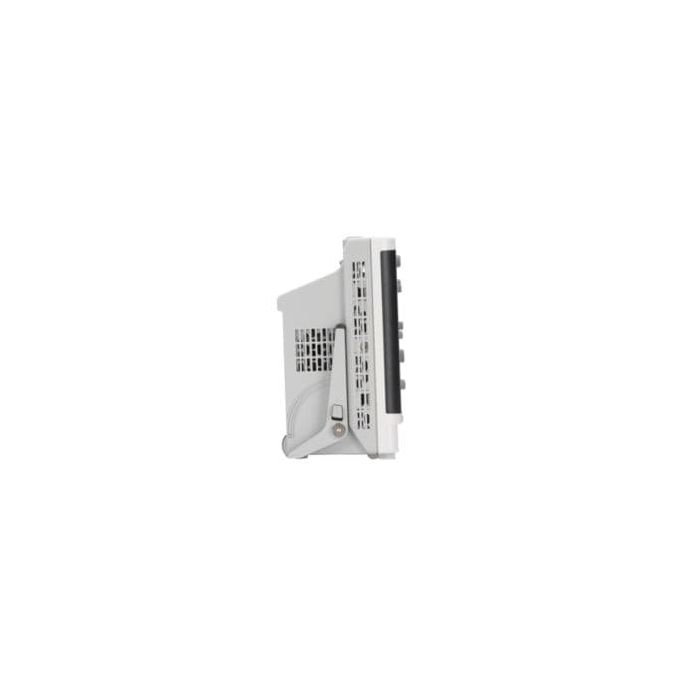

200MHz Mixed Signal Oscilloscope: 4 Analogue and 16 Digital Channels

Keysight InfiniiVision 4000 X-Series oscilloscopes are engineered for next-generation performance to deliver waveform update rates 20 times faster than the competition. A large 12.1-inch capacitive touch screen combined with innovative hardware-based zone touch triggering means you can easily capture and view your signals. Have confidence you will catch even the rarest of glitches and see more with the 4000 X-Series.

Achieve 200 MHz of bandwidth and a dynamic signal detail of 1-million-waveforms/second update rate with the Keysight MSOX4024A. The MSOX4024A turns the most advanced triggering into one easy step with the InfiniiScan Zone touch triggering. Jam-packed with cutting-edge features, Keysight's MSOX4024A also boasts capacitive touch screen technology, MegaZoom IV smart memory technology and standard segmented memory. The MSOX4024A is a mixed signal oscilloscope, providing you with 4 analogue channels and an additional 16 digital channels.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Form Mixed Signal
Series 4000 X-Series
Bandwidth 200 MHz
Channels 4 + 16
Whats Included
  • 3-year warranty (90 days for unserialized accessories such as passive probes)
  • Certificate of Calibration, 2-year calibration interval
  • One N2894A 700 MHz passive probe (10:1 attenuation) per channel
  • N2756-60001 16-digital-channel MSO cable per oscilloscope
  • Localized interface, front panel overlay and built-in help system in English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
  • Localized power cord
  • Front panel cover
  • Documentation CD containing localized user’s guide, service guide, and programmer’s manual
ADC Bits 8 bits
Max Memory Depth 4 Mpts
Max Sample Rate 5 GSa/s
Bandwidth Upgrades Available
Display Size 12.1-inch capacitive touch screen
Special Triggers
  • Touch Zone Trigger
  • Edge
  • Pulse width
  • Video
  • Protocol decodes
  • Zone touch
  • Edge then edge
  • Pattern
  • Runt pulse
  • Rise/fall time
  • Nth edge burst
  • Setup and hold
Waveform Update Rate 1,000,000 wfms/sec
Range InfiniiVision
More Information
Attribute Value
Data Sheet Click here to view
