N9912A
N9912A
Keysight Technologies

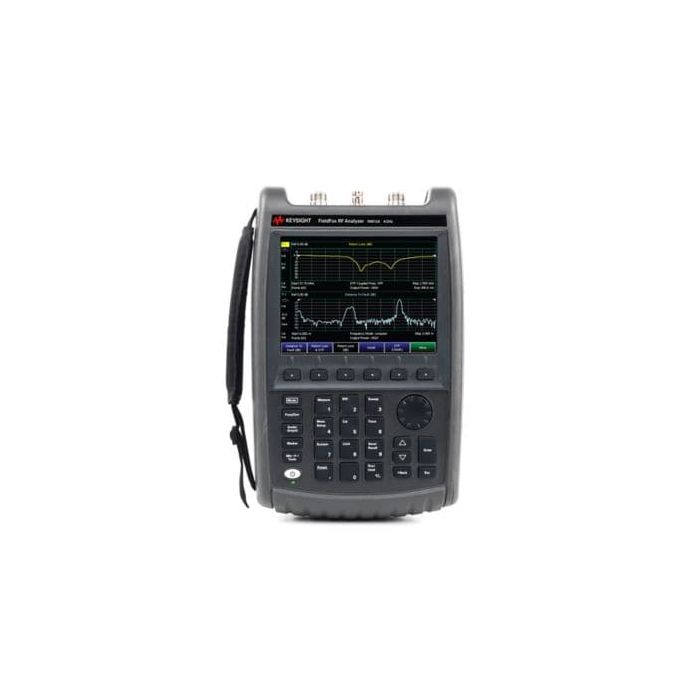

FieldFox RF analyzer
N9912A is a portable battery-operated RF analyzer; N9912A includes a cable and antenna tester, distance to fault tester, spectrum analyzer, power meter, 1-channel vector voltmeter, and transmission/reflection vector network analyzer.
Contact us for lead time
Contact our team for stock availability and product options.
Price
£5,593.92
Experience Keysight’s handheld precision equipment
As a Keysight Premium Partner, our test equipment experts offer product demos, trial units and technical advice, giving you the opportunity to try before you buy. And with supported pricing and some products available within just 5 working days – APC is the partner of choice for all your Keysight test equipment.
| Attribute | Value |
|---|---|
| Whats Included |
|
| Number of Built In Ports | 2 ports |
| Output Power | Up to 8 dBm |
| Applications -General Purpose | AM/FM Tune and Listen, Cable Fault Location, Field Strength Measurement, Spectrogram, Stimulus Response |
| Bandwidth Options | 5 MHz |
| DANL @ 1 GHz | -148 dBm |
| Maximum Analysis Bandwidth | 0 |
| Maximum Real Time Bandwidth | 0 |
| Phase Noise @ 1GHz (1 MHz Offset) | -115 dBc/Hz |
| Phase Noise @ 1 GHz (10 kHz Offset) | -88 dBc/Hz |
| Phase Noise @ 1 GHz (30 kHz Offset) | -89 dBc/Hz |
| Standard Attenuator Range | 31 dB |
| Standard Attenuator Step | 1 dB |
| TOI @ 1 GHz (3rd Order Intercept) | +18 dBm |
| Instrument Type | Combination Analyzer |
| Power Measurement Using USB Sensor | CW or Swept-Frequency, Frequency-Offset, RF Pulse Test with Peak Sensor |
| System Features | GPS Receiver - External Only |
| Additional CAT / VNA Based Features | QuickCal (Subset), Vector Voltmeter |
| Additional SA Based Features | Built-In Power Meter |
| SA Start Frequency | 5 kHz |
| Key Features |
|
| Maximum Frequency | 4 or 6 GHz |
| Minimum Frequency | 2 MHz |
| Series | FieldFox Handheld RF and Microwave Analyzers |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
