N9961A
N9961A
Keysight Technologies

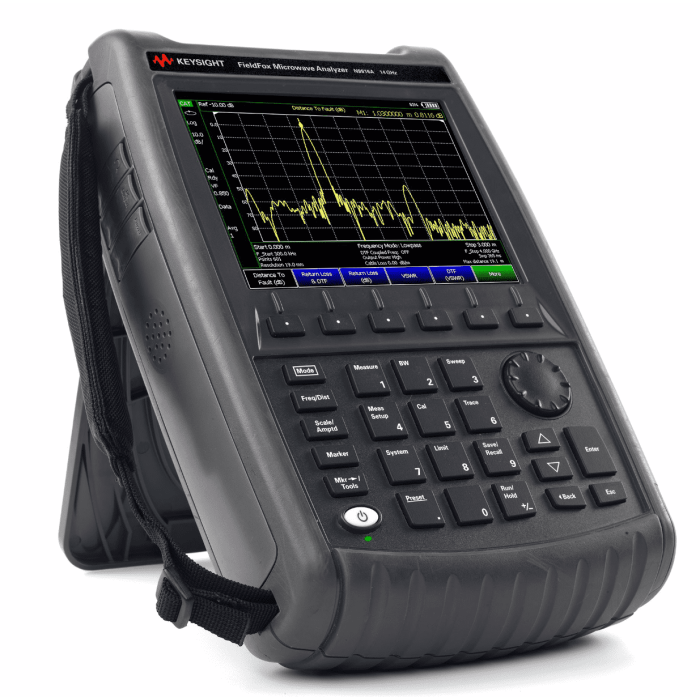

FieldFox Handheld Microwave Spectrum Analyzer, 44 GHz
A lightweight, durable, microwave spectrum analyzer, interference analyzer, distance-tracking generator, preamplifier, power meter, and more
Contact us for lead time
Contact our team for stock availability and product options.
Price
£36,357.12
Experience Keysight’s handheld precision equipment
As a Keysight Premium Partner, our test equipment experts offer product demos, trial units and technical advice, giving you the opportunity to try before you buy. And with supported pricing and some products available within just 5 working days – APC is the partner of choice for all your Keysight test equipment.
| Attribute | Value |
|---|---|
| Whats Included |
|
| Number of Built In Ports | 2 ports |
| Output Power | Up to 4 dBm |
| Applications Cellular | 89600 VSA Software, Over-The-Air LTE FDD and 5GTF |
| Applications -General Purpose | AM/FM Tune and Listen, Field Strength Measurement, SCPI Code Compatibility, Spectrogram, Stimulus Response |
| Applications - Wireless Connectivity | 89600 VSA Software |
| Bandwidth Options | 10 MHz (standard) |
| DANL @ 1 GHz | -159 dBm |
| Maximum Analysis Bandwidth | 10 MHz |
| Maximum Real Time Bandwidth | 10 MHz |
| Phase Noise @ 1GHz (1 MHz Offset) | -113 dBc/Hz |
| Phase Noise @ 1 GHz (10 kHz Offset) | -111 dBc/Hz |
| Phase Noise @ 1 GHz (30 kHz Offset) | -108 dBc/Hz |
| Standard Attenuator Range | 30 dB |
| Standard Attenuator Step | 5 dB |
| TOI @ 1 GHz (3rd Order Intercept) | +13 dBm |
| Instrument Type | Spectrum Analyzer |
| Power Measurement Using USB Sensor | Frequency-Offset, CW or Swept-Frequency, RF Pulse Test with Peak Sensor |
| System Features | GPS Receiver - Internal Only, Remote Control Capability, Built-In DC Source |
| Additional SA Based Features | Real-Time Spectrum Analysis, Noise Figure Measurements, Over-The-Air Measurements, Built-In Power Meter, Extended Range Transmission Analysis (ERTA) |
| SA Start Frequency | 5 kHz |
| Applications - Digital Video | 89600 VSA Software |
| Key Features |
|
| Applications | Distance-to-fault (dB), Return loss (dB), Return loss & DTF (dB), VSWR, Distance-to-fault (VSWR), Cable loss (1-port), Insertion loss (2-port) (requires option 211), Distance-to-fault (Lin), TDR (Lin rho) (requires option 215), TDR (ohm) (requires option 215), TDR & DTF (requires option 215) |
| Maximum Frequency | 44 GHz |
| Series | FieldFox Handheld RF and Microwave Analyzers |
