N9913A
N9913A
Keysight Technologies
A lightweight, durable, cable and antenna analyzer, spectrum analyzer, network analyzer, and more

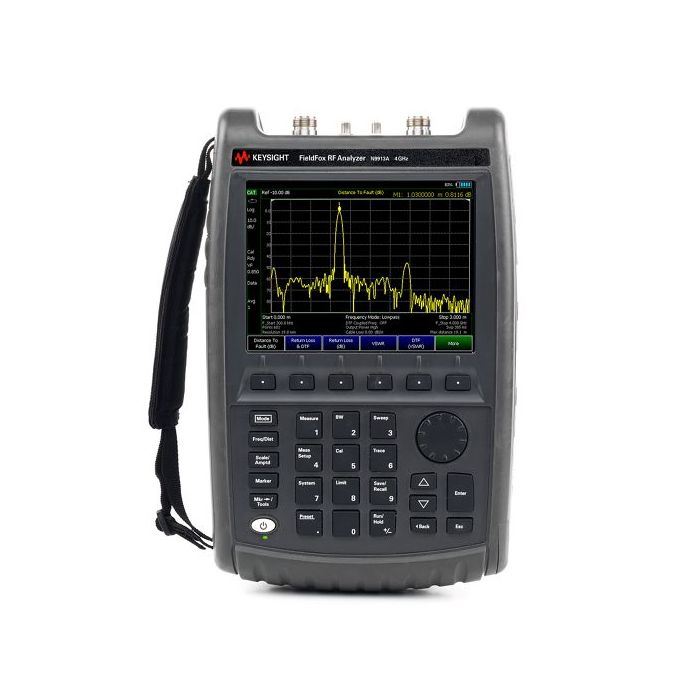

N9913A FieldFox Handheld RF Analyzer, 4 GHz - A lightweight, durable, cable and antenna analyser, spectrum analyser, network analyser, and more
Carry Precision with You
Measuring up and earning a spot in your field kit is the driving idea behind Keysight’s FieldFox handheld analyzers. They’re equipped to handle routine maintenance, in-depth troubleshooting and anything in between. Better yet, FieldFox delivers precise microwave and millimeter-wave measurements - wherever you need to go.
Why choose FieldFox?
- Measure with confidence - precise measurements agree with benchtop results
- Withstands your toughest working environments - rugged enough to meet MIL-specs
- Weighs less than alternative solutions - 7.1 lb (3.2 kg)
- Offers budget flexibility - choose capabilities you need today and easily upgrade later
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Experience Keysight’s handheld precision equipment
As a Keysight Premium Partner, our test equipment experts offer product demos, trial units and technical advice, giving you the opportunity to try before you buy. And with supported pricing and some products available within just 5 working days – APC is the partner of choice for all your Keysight test equipment.
This product is included in our range of discounted Keysight ex-demo equipment!
Get the highest quality of Keysight test equipment at the lowest price with fast delivery! - Whether you're looking for a high-specification Oscilloscope, Low-Noise Test Cables or a high-performance DC Power Supply, APC Technology Group has you covered. Browse our wide range of Keysight ex-demo stock and benefit from high performance, low prices and fast delivery.
| Attribute | Value |
|---|---|
| Whats Included |
|
| Bandwidth Options | 5 MHz, 10 MHz (standard) |
| Number of Built In Ports | 2 ports |
| Output Power | Up to 1 dBm |
| Trace Noise | 0.004 dB rms |
| Applications Cellular | 89600 VSA Software, Over-The-Air LTE FDD and 5GTF |
| Applications -General Purpose | AM/FM Tune and Listen, Cable and Antenna Analysis, Field Strength Measurement, SCPI Code Compatibility, Spectrogram, Stimulus Response |
| Applications - Wireless Connectivity | 89600 VSA Software |
| DANL @ 1 GHz | -155 dBm |
| Maximum Analysis Bandwidth | 10 MHZ |
| Maximum Real Time Bandwidth | 10 MHz |
| Phase Noise @ 1GHz (1 MHz Offset) | -113 dBc/Hz |
| Phase Noise @ 1 GHz (10 kHz Offset) | -111 dBc/Hz |
| Phase Noise @ 1 GHz (30 kHz Offset) | -108 dBc/Hz |
| Standard Attenuator Range | 30 dB |
| Standard Attenuator Step | 5 dB |
| TOI @ 1 GHz (3rd Order Intercept) | +15 dBm |
| Instrument Type | Combination Analyzer |
| Power Measurement Using USB Sensor | CW or Swept-Frequency, Frequency-Offset, RF Pulse Test with Peak Sensor |
| System Features | Built-In DC Source, GPS Receiver - Internal and External, GPS Receiver - Internal Only, Remote Control Capability |
| Additional CAT / VNA Based Features | QuickCal (Subset), Vector Voltmeter, Mixed-Mode S-Parameters, DTF/TDR Cable Measurements |
| Additional SA Based Features | Built-In Power Meter, Extended Range Transmission Analysis (ERTA), Real-Time Spectrum Analysis, Noise Figure Measurements, Over-The-Air Measurements |
| SA Start Frequency | 5 kHz |
| Applications - Digital Video | 89600 VSA Software |
| Spur Free Dynamic Range | > 105 dB |
| Key Features |
|
| Maximum Frequency | 4 GHz |
| Minimum Frequency | 30 kHz |
| Series | FieldFox Handheld RF and Microwave Analyzers |
| Dynamic Range | n/a |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
