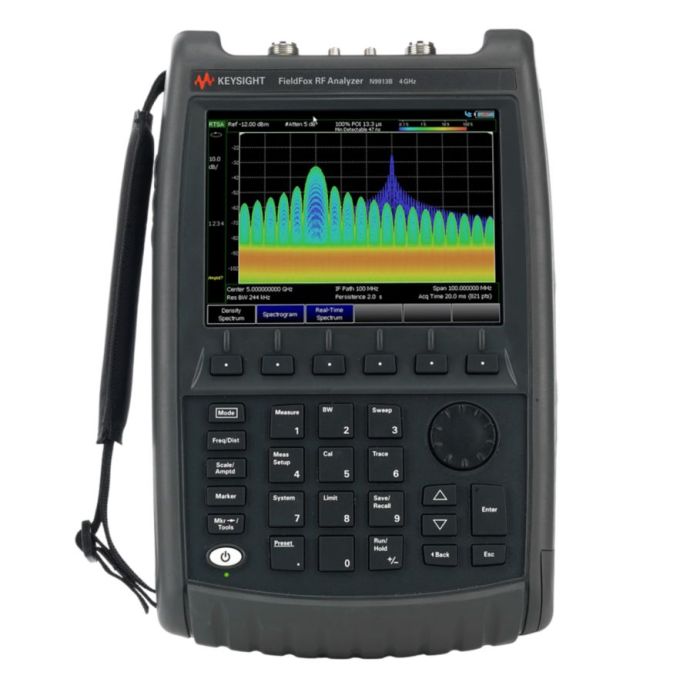

<p>Keysight N9913B Handheld Analyzer, 4 GHz

N9913B

Keysight Technologies

FieldFox N9913B - A lightweight, durable, cable and antenna analyzer, spectrum analyzer, network analyzer, and more.

Skip to the beginning of the images gallery

FieldFox Handheld Microwave Analyzer, 4 GHz

Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between.

The FieldFox N9913B is part of Keysight's range of their industry's most versatile portable analysers designed to coordinate with the ever-increasing demands of 5G, satellite communications, signal monitoring and electronic warfare applications. The Keysight FieldFox B-series analysers offer wide-band, gap-free, real-time measurement capabilities that enable 5G network testing in the field.

Contact our team for stock availability and product options.

Price £12,837.12

Request a quote

Specifications

More Information
Attribute	Value
Whats Included	AC/DC adapter Localized power cord Rechargeable Li-ion battery LAN cable Soft carrying case with backpack and shoulder straps Quick Reference Guide
Number of Built In Ports	2 ports
Dynamic Range	114 dB
Output Power	Up to 1 dBm
Trace Noise	0.0008 dB rms
Applications Cellular	89600 VSA Software Over-The-Air LTE FDD and 5GTF 5G NR
Applications -General Purpose	AM/FM Tune and Listen Cable and Antenna Analysis Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response
Applications - Wireless Connectivity	89600 VSA Software
Bandwidth Options	4_GHz
DANL @ 1 GHz	-163 dBm
Maximum Analysis Bandwidth	120 MHz
Maximum Real Time Bandwidth	120 MHz
Phase Noise @ 1GHz (1 MHz Offset)	-124 dBc/Hz
Phase Noise @ 1 GHz (10 kHz Offset)	-117 dBc/Hz
Phase Noise @ 1 GHz (30 kHz Offset)	-115 dBc/Hz
Standard Attenuator Range	40 dB
Standard Attenuator Step	5 dB
TOI @ 1 GHz (3rd Order Intercept)	+11dBm
Instrument Type	Combination Analyzer
Additional CAT / VNA Based Features	Mixed-Mode S-Parameters DTF/TDR Cable Measurements Vector Voltmeter
Additional SA Based Features	Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements Built-In Power Meter Extended Range Transmission Analysis (ERTA)
SA Start Frequency	5 kHz
Applications - Digital Video	89600 VSA Software
Key Features	Keysight N9913B Key Features: Standard model includes cable and antenna analyzer (CAT). Capture elusive signals with 100 MHz gap-free, real-time bandwidth. Measure all four S-parameters simultaneously with 115 dB dynamic range. Make accurate spectrum analyser measurements (± 0.3 dB) without warmup. Perform over-the-air measurements for 5G NR and LTE. Use GPS/GNSS for geolocation and timestamping. Carry one lightweight unit at 3.4 kg (7.4 lb).
Maximum Frequency	4 GHz
Minimum Frequency	30 kHz
Series	FieldFox Handheld RF and Microwave Analyzers
