NLTL-6796SM
NLTL-6796SM
Marki Microwave
GaAs MMIC Non-Linear Transmission Line
NLTL-6796SM is a MMIC non-linear transmission line (NLTL) based comb generator. This NLTL offers excellent phase noise performance over a 500MHz to 3.5 GHz input frequency range with output tones beyond 40 GHz.

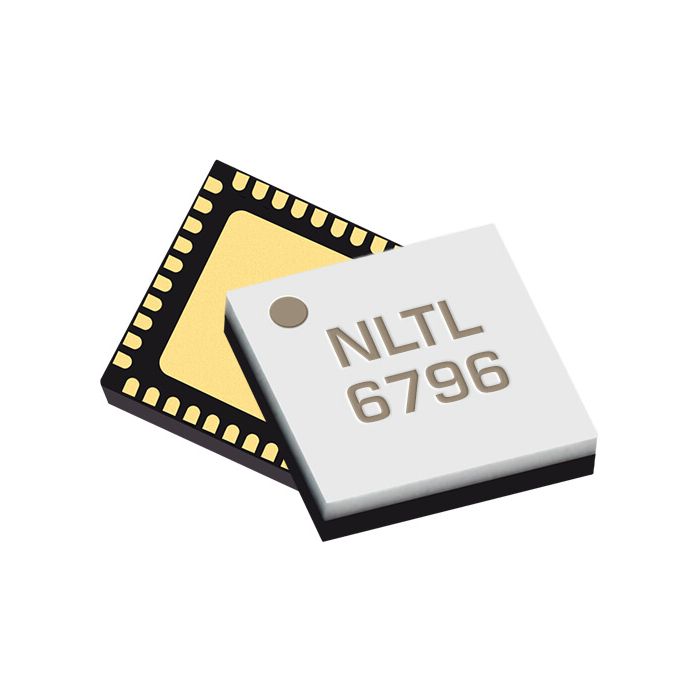

NLTL-6796SM is fabricated with GaAs Schottky diode-based varactors and packaged into a surface mount 6mm QFN.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Applications |
|
| Minimum Input (GHz) | 0.5 |
| Maximum Input (GHz) | 3.5 |
| Minimum Output (GHz) | 0.5 |
| Maximum Output (GHz) | 50 |
| Drive Level (dBm) | +20 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
