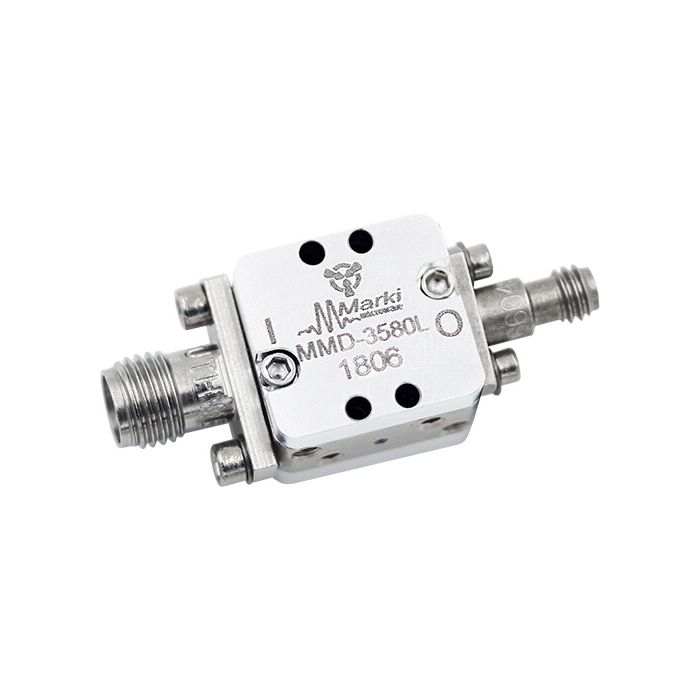

MMD-3580L
MMD-3580L
Marki Microwave
GaAs MMIC Millimeter Wave Doubler
The MMD-3580L is a MMIC millimeter wave doubler fabricated with GaAs Schottky diodes. This operates over a guaranteed 17.5 to 40 GHz input frequency range or a doubled output frequency range of 35 to 80 GHz. The die version, MMD3580LCH, is capable of operating beyond 80GHz.
Both the wire bondable die and connectorised units are available. The MMD3567L is a bandlimited version of this doubler.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Applications |
|
| Conversion Loss (dB) | 11 |
| Minimum Input (GHz) | 17.5 |
| Maximum Input (GHz) | 40 |
| Minimum Output (GHz) | 35 |
| Suppression F (dBc) | 38 |
| Suppression 3F (dBc) | 44 |
| Maximum Output (GHz) | 80 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
