P2220
P2220
Tektronix

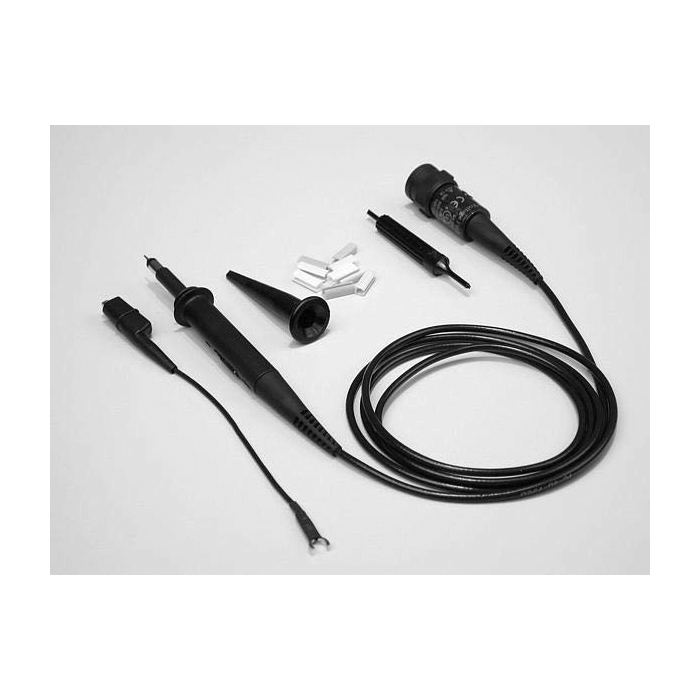

Passive Probe, 1x/10x, 200 MHz Passive Voltage Probe
Tektronix Passive voltage probes ship standard with most oscilloscopes and provide a low-cost, general purpose probing solution. Tektronix passive probes provide the ruggedness and wide dynamic range suitable for visualising signals over a broad range of applications. Tektronix has released a new class of passive probes that redefine performance in the passive probe product category.
Tektronix passive probe solutions provide high reliability and testing accuracy for basic oscilloscope measurements. The P2220 and P2221 are compact passive probes with selectable 1X/10X attenuation designed for use with selected Tektronix oscilloscopes.
The P2220 and P2221, 200 MHz passive voltage probes permit selection of 1x or 10x attenuation, using a switch located on the probe head.
The P2220 probe is compatible with TDS200, TDS1000, TDS1000B, TDS2000, TDS2000B, and TPS2000 Series oscilloscopes. The P2220 probe also provides floating measurement capability up to 30 VRMS with TPS2000 Series oscilloscopes only. The P2221 is compatible with MSO2000 and DPO2000 Series oscilloscopes.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Passive Probe |
| Product Family | Passive Probe |
| Key Features |
|
| Bandwidth | 200 MHz |
| Whats Included |
|
| Applications |
|
| Probe Attenuation | 1X / 10X |
| Cable Length | 1.5m |
| Maximum Voltage | 10X: 300 Vrms CAT II 1X: 150 Vrms CAT II |
| Accessory Type |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
