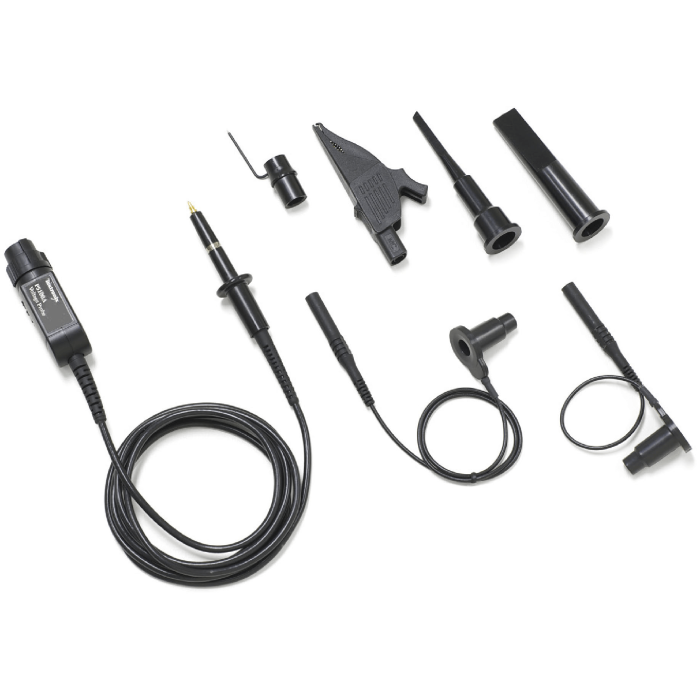

50X, High-voltage Probe for TPS2000/B and THS3000 Series Oscilloscopes
Safe high voltage probe solutions for ground-referenced voltage testing. It is critical to safely and accurately capture real-time signal information from "elevated" or "floating" voltage systems. Our portfolio of high-voltage probes provides the safety you need for single-ended, differential or isolated measurements.
P5150 and P5122 IsolatedChannel™ Applications
In many applications, it is important to be able to isolate the measurement from earth ground and also to isolate the common voltage between channels. The P5150 or P5122, coupled with the TPS2000 and THS3000 Series digital storage oscilloscopes, deliver both the isolation for the measurement from earth ground and full isolation between the channels. The P5150 is the recommended probe for measuring ripple on high-voltage DC supplies. The P5122 probe should not be used on the TPS2000 Series oscilloscopes for AC-coupled measurements on signals with greater than 300 V DC offset.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | High Voltage Single Ended Probes |
| Product Family | High Voltage Single Ended Probes |
| Key Features |
|
| Bandwidth | 500 MHz |
| Whats Included |
|
| Applications |
|
| Rise Time | <700 ps |
| Probe Attenuation | 50X |
| Input Impedance | 40 MΩ || 3.8 pF |
| Cable Length | 2m |
| Maximum Voltage | Peak: 2.5 kV RMS: 1000 V CAT II |
| Accessory Type |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
