P5960

Verification and debugging of today's high-speed digital signals require probing solutions that can accurately acquire from a wide variety of electronic designs and protect signal fidelity. The Tektronix logic analyser probes contain a variety of connectivity options that are engineered to ensure that signal acquisition is a true reflection of your design's performance.

Leading probe solutions for real-time digital systems analysis – Tektronix P5900 series probes No test and measurement solution is complete without probing and the consideration of its impact on your system and your measurement time. With the industry's lowest probe loading, the P5900 Series logic analyser probes protect the integrity of your signal - minimising the impact on your design. The P5900 Series logic analyser probes when used with TLA6400 Series logic analysers make sophisticated logic analysis available at an affordable price. Select from a variety of attachment mechanisms, including the high-density D-Max®, Mictor, and general-purpose.

Tektronix P5900 Series Probe Highlights:

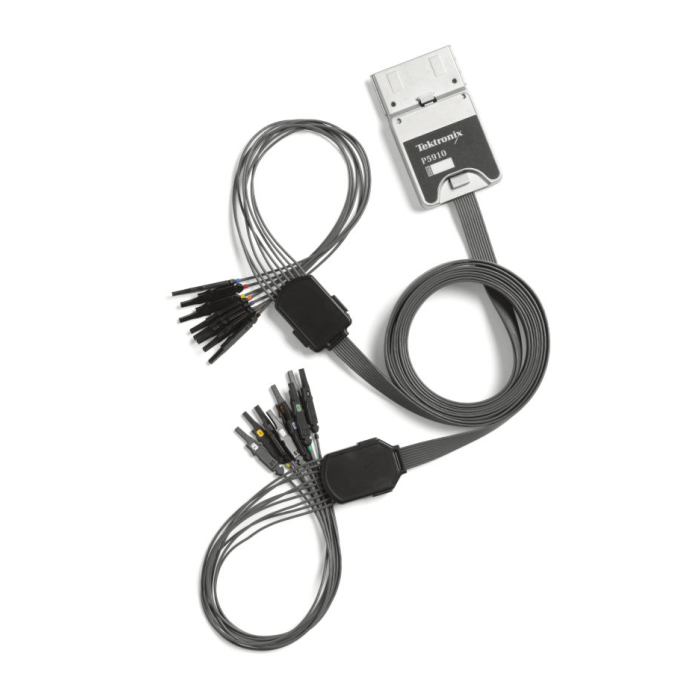

• The 17-channel P5910 provides flexible general-purpose probing, with support for 0.100 in. and 2 mm pin spacing, low input capacitance, and accessories for connecting to many industry-standard connections.
• For applications where circuit board space is limited, the 34-channel high-density P5960 D-Max offers the smallest available footprint and a quick connection mechanism.
