P6248

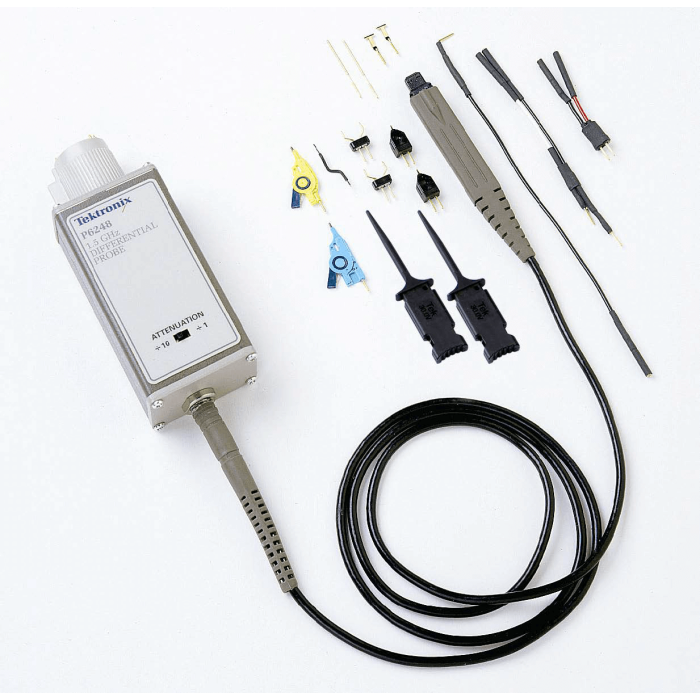

The Tektronix P6248 Differential Probe enables users to make time domain or frequency-domain measurements on high-bandwidth signals commonly found in disk drive, digital IC design (RAMBUS), and communication applications (Gigabit Ethernet, IEEE-1394 Firewire, and Fibre Channel). The P6248 includes accessories that allow RAMBUS via probing and IEEE-1394 interconnect access. The small probe head geometry and assorted probe tip accessories allow these probes to easily accommodate manual probing of surface-mount devices while maintaining high CMRR.

Tektronix P6248 Differential Probes

The P6248 Differential Probe is ideal for design verification of disk drive read, channel electronics, and timing analysis for troubleshooting ground-bounce problems associated with high-speed logic. They can also be used for pulse shape or crosstalk compliance testing of high-speed communication signals.

P6248 Key Performance Specifications

• ≥1.5 GHz bandwidth (guaranteed)
• 1.7 GHz (typical, ≤27 °C) 1X mode
• 1.85 GHz (typical, ≤27 °C) 10X mode
