TRCP0300
TRCP0300
Tektronix
300 A, AC-Only Rogowski Current Probe

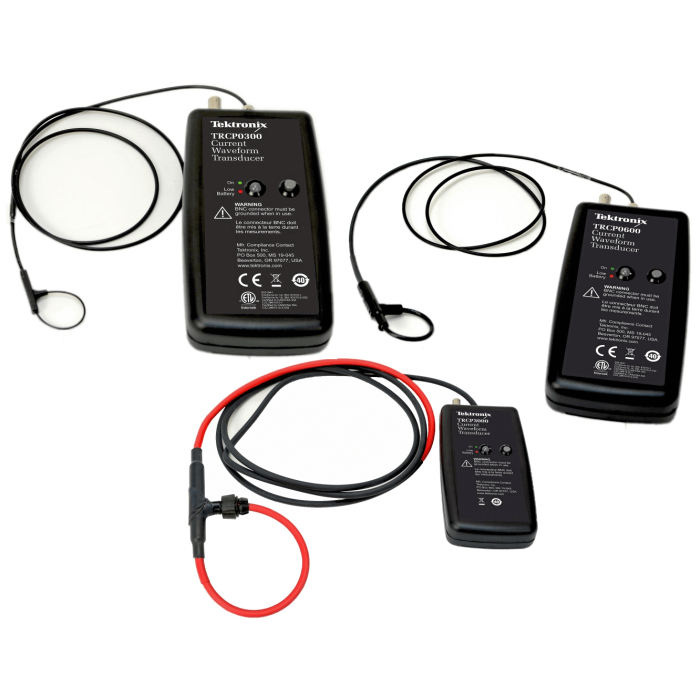

The Tektronix TRCP0300 Rogowski current probe comes equipped with a BNC
connector and works with any instrument supporting the BNC interface. Rogowski probes allow you to easily connect to large connection points such as bus bars or connect to small IC legs on a MOSFET or IGBT.
The Tektronix TRCP0300 is designed for use on small form factor components. These AC-only Rogowski probes have a thin, flexible coil that can easily be wrapped around test points such as the leg of a transistor.
- Sensitivity: 20 mV/A
- External probe attenuation setting on an oscilloscope: 50X
- Accuracy (typical): +/- 2% of reading
- Coil diameter: 1.7 mm
- Termination: 1 MΩ BNC
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Current_Probes |
| Product Family | Current Probes |
| Key Features |
|
| Bandwidth | 30 MHz |
| Whats Included |
AC power adapter |
| Applications |
|
| Accessory Type | Probe |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
