P5100A
P5100A
Tektronix
100X, High Voltage Probes
Safe high voltage probe solutions for ground-referenced voltage testing. It is critical to safely and accurately capture real-time signal information from "elevated" or "floating" voltage systems. Our portfolio of high-voltage probes provides the safety you need for single-ended, differential or isolated measurements.

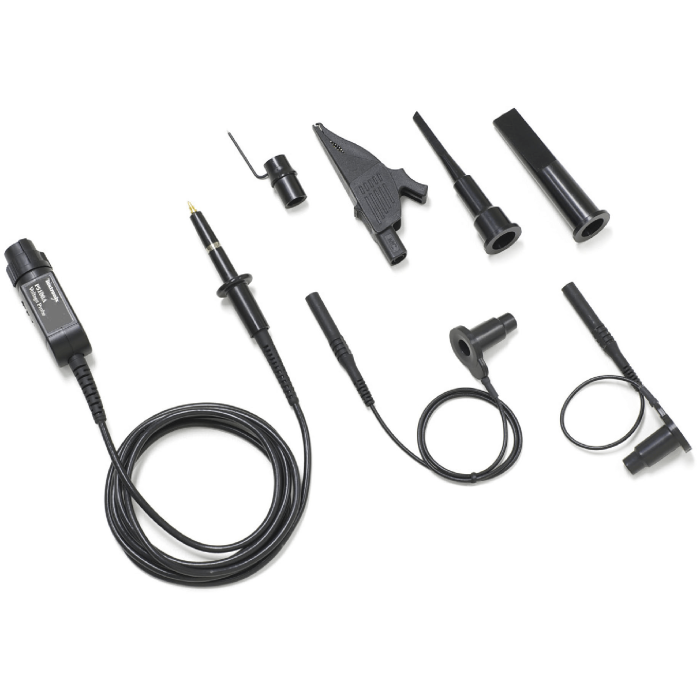

The P5100A is a low-input capacitance, high-voltage probe (2.5 kV) designed for higher-frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7-30 pF. A variety of screw on accessories provides an easy connection to the device under test.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | High Voltage Single Ended Probes |
| Product Family | High Voltage Single Ended Probes |
| Key Features |
|
| Bandwidth | 500 MHz |
| Whats Included |
|
| Applications |
|
| Rise Time | <700 ps |
| Probe Attenuation | 100X |
| Input Impedance | 40 MΩ || 2.5 pF |
| Cable Length | 2m |
| Maximum Voltage | Peak: 2.5 Kv RMS: 1000 V CAT II |
| Accessory Type |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
