Tektronix TCP0150 AC/DC current probe with TekVPI interface Probe| APC Technology Group

TCP0150

Tektronix

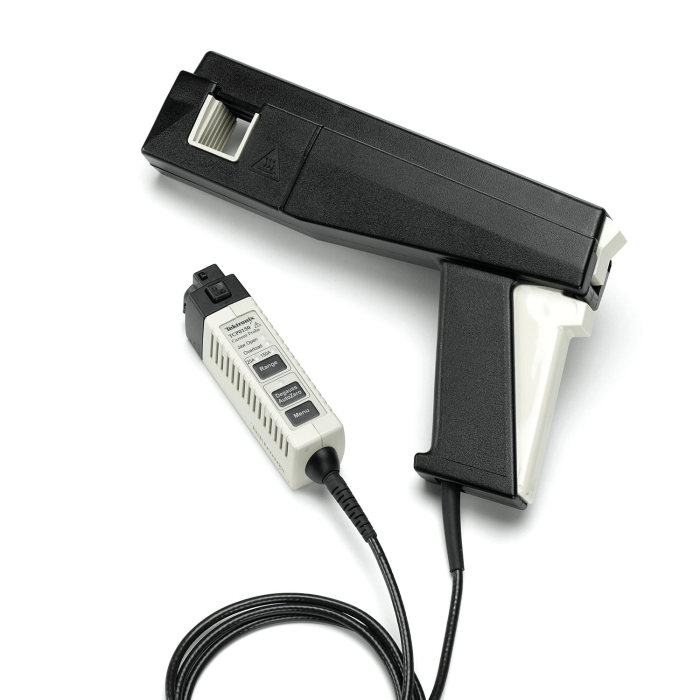

The TCP0150 is a high-performance and easy-to-use 150 A AC/DC current probe designed for use and direct connection to the TekVPI™ probe interface.

Easy-to-Use and accurate AC/DC current measurements
Connects directly to oscilloscopes with the TekVPI™ probe interface
Low noise and DC drift
Provides automatic units scaling and readout on the oscilloscope's display
Remote GPIB/USB probe control through the oscilloscope
Split-core probe head construction allows easy connection to conductors
Easy to degauss and autozero
Setup controls and probe status and diagnostic indicators are provided on both the probe hardware and through an Easy-to-Access scope UI display menu

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute	Value
Product Segment	Current_Probes
Product Family	Current Probes
Key Features	DC to 20 MHz bandwidth 150 A_RMS maximum current capability 500 a peak pulse current capability High accuracy with typically less than 1% DC gain error Accurately measures current levels as low as 5 mA
Bandwidth	20 MHz
Whats Included	Protective cover (016-1924-xx) Certificate of traceable calibration
Applications	Power supplies Semiconductor devices Power inverters/converters Electronic ballasts Industrial/consumer electronics Motor drives Transportation system
Rise Time	< 17.5 ns
Maximum DC Current	150 A
Cable Length	2
Accessory Type	Current Probes

More Information
Attribute	Value
Data Sheet	Click here to view
