Tektronix TDP4000 4 GHz Differential Probe | APC Technology Group
My Cart
£0.00

TDP4000

TDP4000

Tektronix

4 GHz Differential Probe with TekVPI™ Probe Interface, Certificate of Traceable Calibration Standard

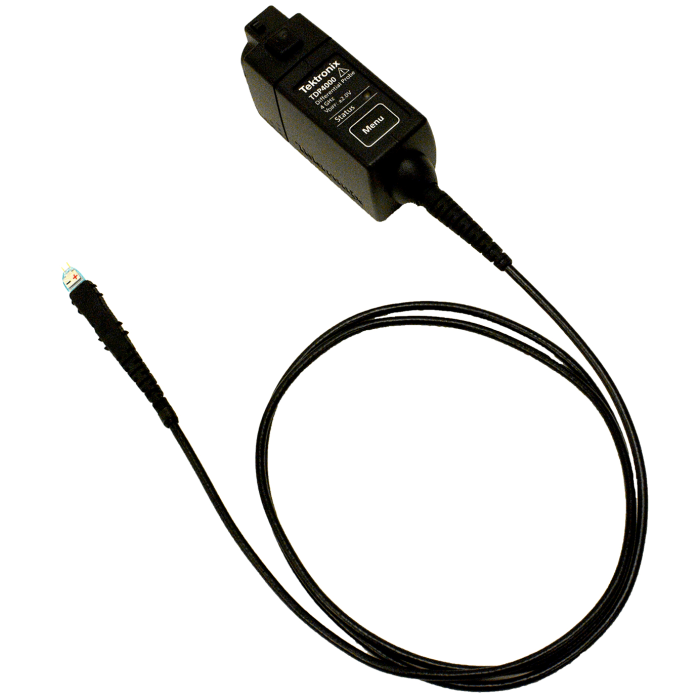

main product photo

Differential active probes provide truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and versatile device-under-test connection capabilities, the TDP1500, TDP3500 and TDP4000 Differential-ended Active probes provide excellent high-speed electrical and mechanical performance required for today's digital system designs.

Key performance specifications

  • 4 GHz (TDP4000), 3.5 GHz (TDP3500) and 1.5 GHz (TDP1500) probe bandwidth

  • ≤1 pF (TDP1500) and ≤0.3 pF (TDP3500/TDP4000) differential input capacitance

  • 200 kΩ (TDP1500) and 100 kΩ (TDP3500/TDP4000) differential input resistance

  • ±25 V (TDP1500) and ±15 V (TDP3500/TDP4000) DC + pk AC input voltage (non-destruct)

  • >60 dB at 1 MHz and >25 dB at 1 GHz CMRR
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Segment Low Voltage Differential Oscilloscope Probes
Product Family Low Voltage Differential Oscilloscope Probes
Key Features
  • Outstanding electrical performance
    • 4 GHz, 3.5 GHz and 1.5 GHz bandwidth models - accurate measurements for serial and digital applications
    • Excellent common mode rejection – reduces measurement errors in higher common environments
    • Low capacitive and resistive loading – maintains signal fidelity and reduces DC biasing interactions
  • Versatile mechanical performance
    • Compact probe head size for probing small geometry circuit elements
    • DUT attachment accessories enable connection to fine-spaced SMDs
    • Robust design for reliability
  • Easy to use
    • Connects directly to oscilloscopes with the TekVPI™ probe interface
    • Provides automatic units scaling and readout on the oscilloscopes display
    • Easy access to probe comp box controls or oscilloscope probe menu display for probe status, setup control, and diagnostic information
  • Integrated Scope/Probe system
    • Direct connection to and powered from the TekVPI™ oscilloscope interface (Connects directly to TekVPI scopes without the need of an external power supply, like many competitors require)
    • Single-button oscilloscope probe menu access
    • Setup and control from probe comp box or oscilloscope user interface
    • AutoZero - zeros out output offset

    • Remote GPIB/USB probe control through the oscilloscope
Bandwidth 4 GHz
Applications
  • Design, validation, debugging, and characterisation of common high-speed serial bus designs:
    • I 2C
    • CAN/LIN
    • SPI
    • Serial ATA
    • Ethernet (GbE)
    • USB 2.0
    • FIreWire (1394b)
  • Signal integrity, jitter, and timing analysis
  • Manufacturing, engineering, and test
Rise Time ≤125 ps
Probe Attenuation 5X
Input Impedance 100 kΩ || ≤ 0.3 pF
Maximum Voltage ±15 V (DC + pk AC)
Accessory Type
More Information
Attribute Value
Data Sheet Click here to view
