P6703B

Depend on Tektronix P6701B and P6703B optical-to-electrical analogue converters to provide you with the performance you can count on, and industry-leading service and support.

Tektronix P6700 Series optical-to-electrical (O/E) converters Highlights:

• Broad Wavelength Response 500 to 950 nm or 1100 to 1700 nm
• High-bandwidth DC up to 1.2 GHz
• High Gain 1 V/mW
• Low Noise <11 pW/√Hz
• Probe Connects to DPO7000 and DPO/DSA/MSO70000 Series
• SONET/SDH and Fibre Channel Reference Receiver Performance

The Tektronix P6700 Series optical-to-electrical (O/E) converters change optical signals into electrical signals for convenient analysis on Tektronix DPO7000 and DPO/MSO70000 Series oscilloscopes with appropriate adapters, any other Tektronix oscilloscope equipped with a TekProbe interface, or when used with the 1103 TekProbe power supply. The P6700 Series O/E converters are ideal for optical source characterisation in the development, manufacture, or service of optical communication systems and devices.

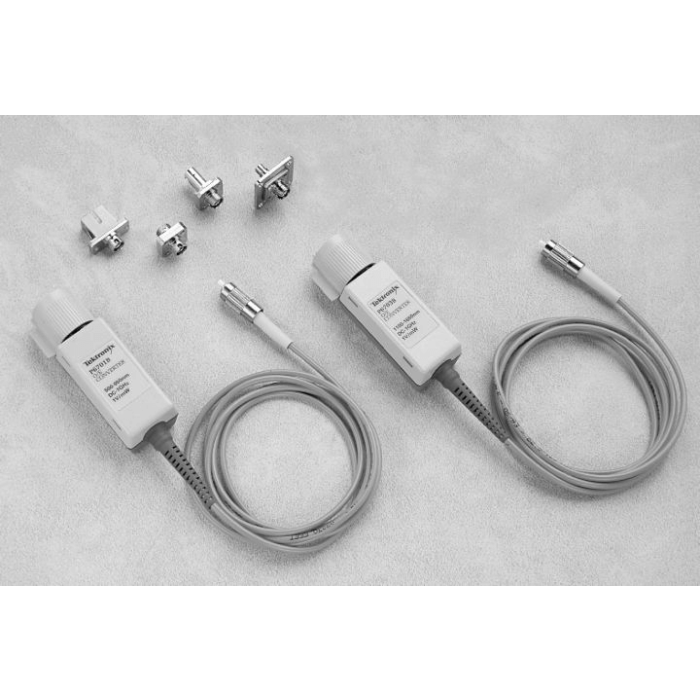

Small, conveniently packaged P6701B and P6703B optical-to-electrical analogue converters provide an accurate interface for optical pulse shape measurements. The high gain, large dynamic range, and stable output offset of these O/E converters make them ideal for performing eye pattern analysis and extinction measurements.

The P6701B/P6703B optical input is a 1 meter, 62.5μ Multi-Mode fibre with an FC/PC connector. Using the standard assortment of hybrid fibre-optic mating sleeves, these O/Es can accommodate the various industry connector standards.

The TekProbe interface provides power, auto-scaling, auto-termination, and correct units (microwatts) when used with Tektronix DPO7000 or DPO/MSO70000 and earlier TekProbe-equipped Series oscilloscopes.

Performance you can count on

Depend on Tektronix to provide you with the performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.

The standard P6701B has a nominal frequency response which follows the fourth-order Bessel-Thompson for Fibre Channel 1063 Mb/s. The 1103 TekProbe power supply can be used to connect these products to the DSA8300 Series sampling oscilloscopes.
