M186
M186
Enercon Technologies Europe
AC-DC Power Supply Three Phase

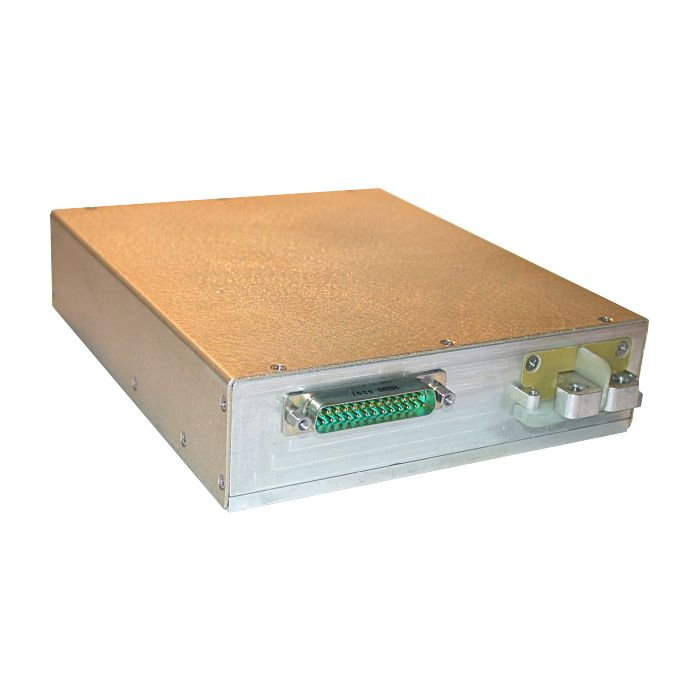

The M186 is a ruggedised military grade AC-DC Power Supply Three Phase with an input voltage range of 103-127VAC | Three Phase | 400Hz and One output(s) with an output power rating up to 2000W. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-810
- MIL-STD-461
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | Baseplate Mount |
| Product Type | Power Supply (Converter) |
| Standards |
|
| Output Power | 2000W |
| Fixed Switching Frequency | 400kHz |
| Power Factor | 0.92 |
| Power Efficiency | 0.9 |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 103-127VAC | Three Phase | 400Hz |
| Operating Temperature | -55°C to 85°C |
| Outputs | Single Output |
| Dimensions | 191.01 x 147.57 x 40.64 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
