Enercon Technologies Europe

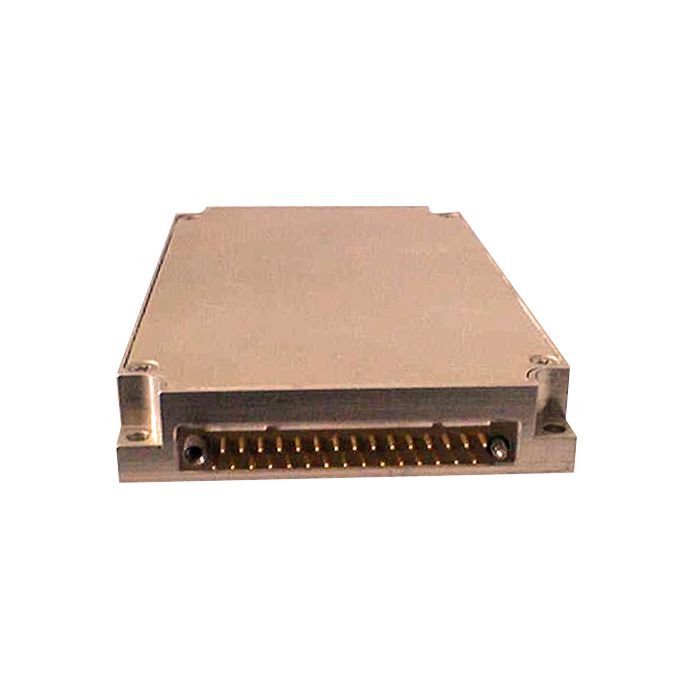

M255 Series DC-DC Holdup Units

The M255 Series is a ruggedised military grade DC/DC Holdup Unit with an input voltage range of 18-48VDC and one output. Designed for a variety of applications including: Military (Airborne, ground mobile, shipboard), Telecom and Industrial. Custom outputs are available upon request.

Designed to meet the following standards:

  • MIL-STD-810
  • MIL-STD-461
  • MIL-STD-704
  • MIL-STD-1275

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Form Factor Baseplate Mount
Product Type Holdup Unit
Standards
  • MIL-STD-810
  • MIL-STD-461
  • MIL-STD-704
  • MIL-STD-1275
Fixed Switching Frequency 250kHz
Filters EMI Filters Included
Output Range
  • 18V to 48V @ 12A
Input 18-48VDC
Operating Temperature -55°C to 85°C
Dimensions 54.61 x 65.02 x 13.97 mm
Outputs Single Output
More Information
Attribute Value
Data Sheet Click here to view
