M4706
M4706
Enercon Technologies Europe
6U VITA 62 & SOSA™-Aligned VPXThree Phase

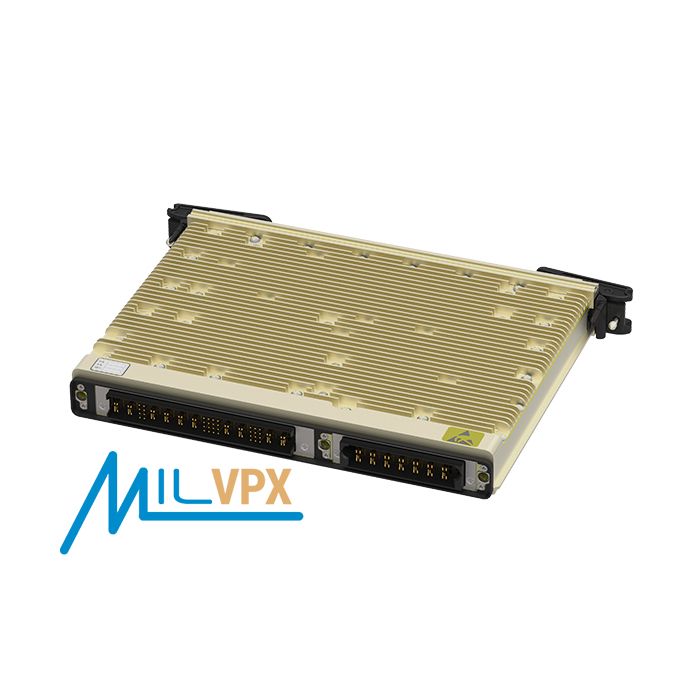

The M4706 is a ruggedised military grade 6U VITA 62 & SOSA™-Aligned VPXThree Phase with an input voltage range of 103-127VAC | Three Phase | 400Hz and Two output(s) with an output power rating up to 1100W. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-704
- MIL-STD-810
- MIL-STD-461
- SOSA™
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | 6U |
| Product Type | Power Supply (Converter) |
| Standards |
|
| Output Power | 1100W |
| Power Efficiency | 0.87 |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 103-127VAC | Three Phase | 400Hz |
| Current Share | Yes |
| Holdup | 50ms up to 100W |
| Communication Protocol | 46.11 |
| Operating Temperature | -55°C to 55°C |
| Outputs | Dual Output |
| Dimensions | 6U, 1.18" |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
