R15L100-MLA3HB
R15L100-MLA3HB
Winmate

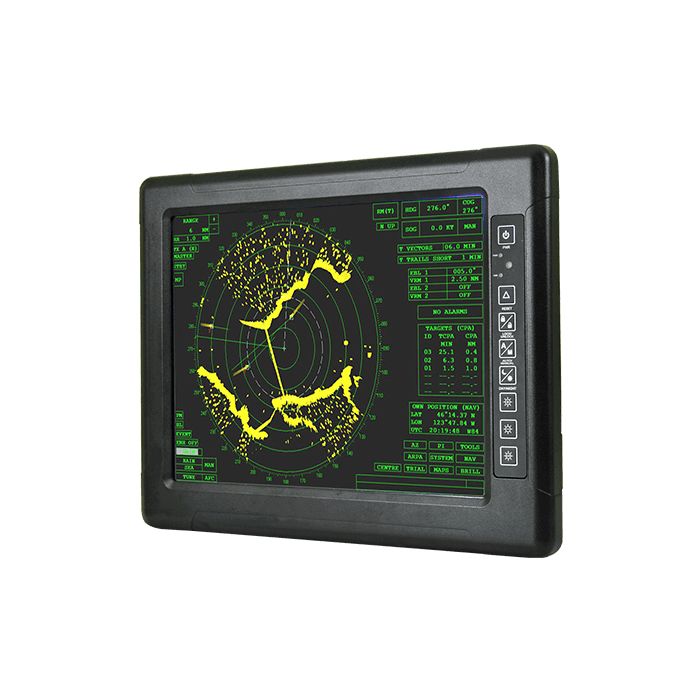

15" G-WIN Military Display
The Military G-WIN Displays offer robust, rugged computing solutions for armored and military vehicles - vibration resistant MIL-STD-810G, water, and dustproof IP6x fixed-mount or mobile with vehicle docking solution for vehicle navigation, location tracking, and real-time communications between the vehicle and control center.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Size | 15.0 inches |
| Power Rating |
|
| Resolution | 1024x768 |
| Contrast Ratio | 2500:1 |
| Shock | Operating:30g for 18ms |
| Vibration | Operating: 1.60/1.96/2.18 g rms for XYZ / 5-500Hz |
| Mounting | VESA Mount |
| Certifications | CE, FCC |
| Serial Port | 1 x RS232 for Touch Screen(Military Grade) (Optional) |
| USB | 1 x USB for Touch Screen(Military Grade) (Optional) |
| Cooling system | Fanless Design |
| Enclosure | Metal Housing with Aluminum Bezel |
| Video | 1 x VGA(Military Grade) |
| Button |
8 key:
|
| MIL-STD 810F/G |
|
| MIL-STD 461E/F |
|
| Operating Humidity | 10% to 95% RH |
| Touch / Glass |
|
| View Angles | 88,88,88,88 |
| Panel Brightness | 1000 nits |
| Accessories |
|
| Storage Temperature | -30°C~70°C |
| Operating Temperature | -20°C~60°C |
| Dimensions | 398 x 308 x 58 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
