W32L100-MLA1FP
W32L100-MLA1FP
Winmate

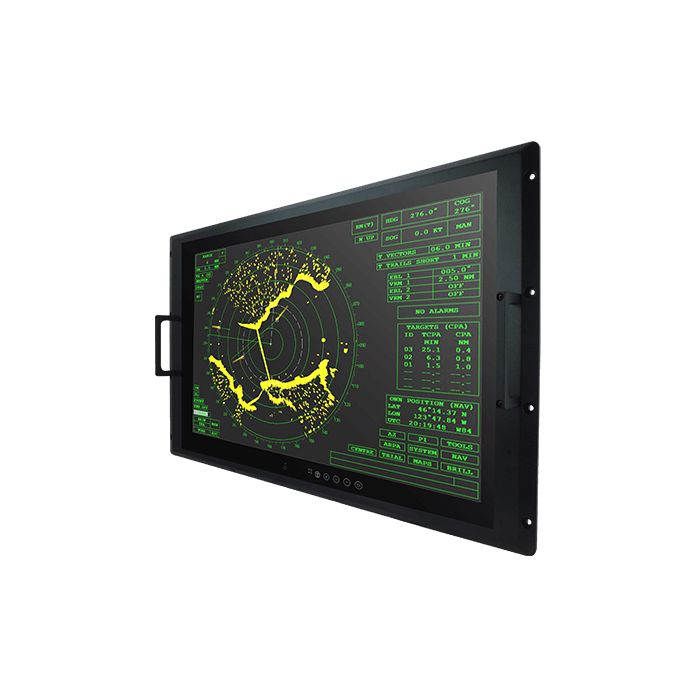

32” 4K UHD PCAP Rack Mount Military Display
To meet the regulatory requirements of the military and defense, all Winmate's Military Console Rack Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard.
Selected models support the NVIS MIL-STD-3009 night vision. Winmate performs in-house reliability test to ensure optimal performance in harsh military environments.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Size | 32.0 inches |
| Power Rating |
|
| Resolution | 3840x2160 |
| Contrast Ratio | 1000:1 |
| Mounting | VESA Mount/ Rack Mount |
| Certifications | CE, FCC |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| USB | 1 x USB for Touch Screen (Optional) |
| Audio | 1 x Audio Line In |
| Cooling system | Fanless Design |
| Enclosure | Metal |
| Video |
1 x VGA
1 x DVI 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional) |
| Button |
5 x Capacitive Touch Key
|
| MIL-STD 810F/G |
|
| MIL-STD 461E/F |
|
| Operating Humidity | 10% to 95% RH |
| Touch / Glass |
|
| View Angles | 89,89,89,89 |
| Panel Brightness | 350 nits |
| Accessories |
1 x User Manual(Hardcopy)
1 x Power Cord MILDTL38999/1 1 x VGA Cable 1 x DVI Cable 2 x HDMI Cable 1 x DP Cable 1 x Auido cable |
| Storage Temperature | -10°C~60°C |
| Operating Temperature | 0~50°C |
| Dimensions | 825 x 486 x 54 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
