Winmate

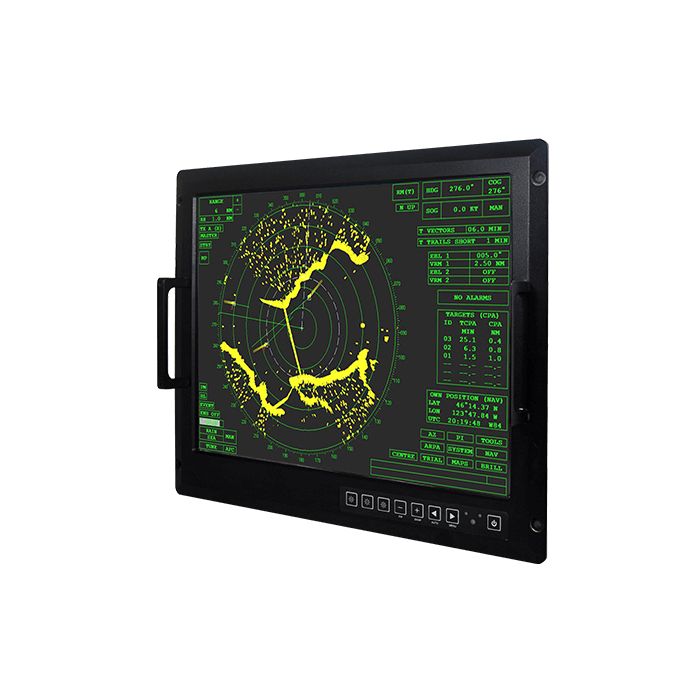

20.1" Rack Mount Protective Glass Military Display

To meet the military and defense regulatory requirements, all Winmate's Military Console Rack Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standards.

Selected models support the NVIS MIL-STD-3009 night vision. Winmate performs in-house reliability test to ensure optimal performance in harsh military environments.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Size 20.1 inches
Power Rating
  • AC 100~240V, Universal, ±10%
  • DC 9~36V, ±10% (Optional)
Resolution 1600x1200
Contrast Ratio 1400:1
Mounting Rack Mount/ VESA Mount
Certifications CE, FCC
Cooling system Fanless Design
Enclosure Metal Housing with Aluminum Bezel
Video 1 x 15 Pin D-Sub
5 x BNC
1 x DVI-D
Button 8 key:
  • Power
  • Menu
  • Auto
  • Volume Up / Swap
  • Volume Down / PIP
  • Brightness Up
  • Brightness Down
  • LED Adjustment
MIL-STD 810F/G
  • Vibartion Method 514.5
  • Humidity Method 507.4
  • Transit Drop Method 516.5
MIL-STD 461E/F
  • RE101 / RE102
  • CE101 / CE 101 with EMI Glass / Touch(Optional)
  • RS101 / RS 103
  • CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116
Operating Humidity 10% to 95% RH
Touch / Glass Protection Glass
View Angles 85,85,85,85
Panel Brightness 330 nits
Accessories 1 x User Manual(Hardcopy)
1 x Power Cord MIL-DTL-38999/1
1 x VGA Cable
1 x DVI Cable
1 x VGA to 5 BNC Shielding Cable
Storage Temperature -10°C~60°C
Operating Temperature 0~50°C
Dimensions 482.6 x 399.3 x 80 mm
More Information
Attribute Value
Data Sheet Click here to view
