M320TF-MIL
M320TF-MIL
Winmate

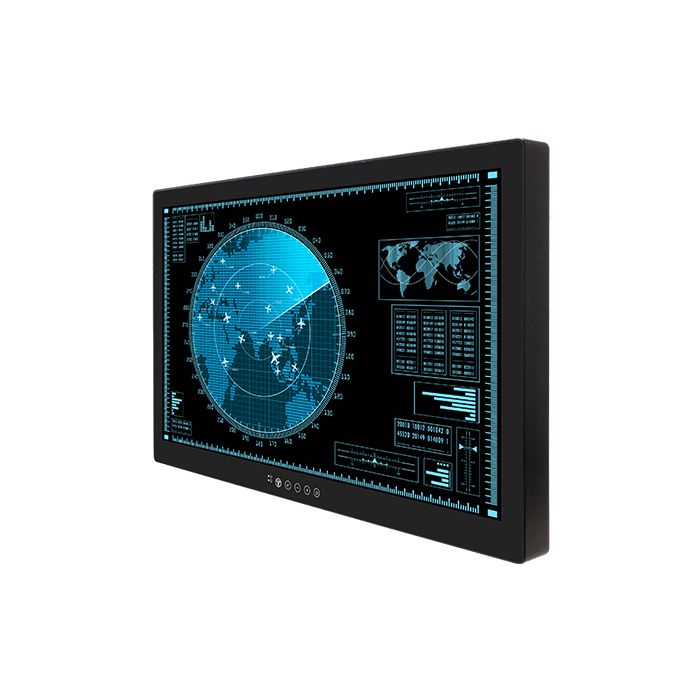

32” 4K UHD Military Chassis Display
Winmate 4K UHD Military Displays feature a brilliant screen with UHD 4K (3840 x 2160) resolution to help minimise errors and improve operational efficiencies. Now every detail on the screen displayed more detailed than ever.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Size | 32.0 inches |
| Power Rating | 24V DC in |
| Resolution | 3840x2160 |
| Contrast Ratio | 1000:1 |
| Mounting | VESA Mount |
| Certifications | CE, FCC |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| USB | 1 x USB for Touch Screen (Optional) |
| Audio | 1 x Audio Line In |
| Cooling system | Fanless Design |
| Enclosure | Metal |
| Video |
1 x VGA
1 x DVI 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional) |
| MIL-STD 810F/G |
|
| MIL-STD 461E/F |
|
| Operating Humidity | 10% to 95% RH |
| Touch / Glass |
|
| View Angles | 89,89,89,89 |
| Panel Brightness | 350 nits 700 nits(Optional) |
| Optional Accessory | USB cable for Touch (Optional) |
| Active Area | 708.48 x 398.52 mm |
| Accessories |
|
| Storage Temperature | -10°C~60°C |
| Operating Temperature | 0~50°C |
| Dimensions | 777.58 x 477.62 x 48 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
