LUPIN BF3-NP
LUPIN BF3-NP
ELSE NUCLEAR

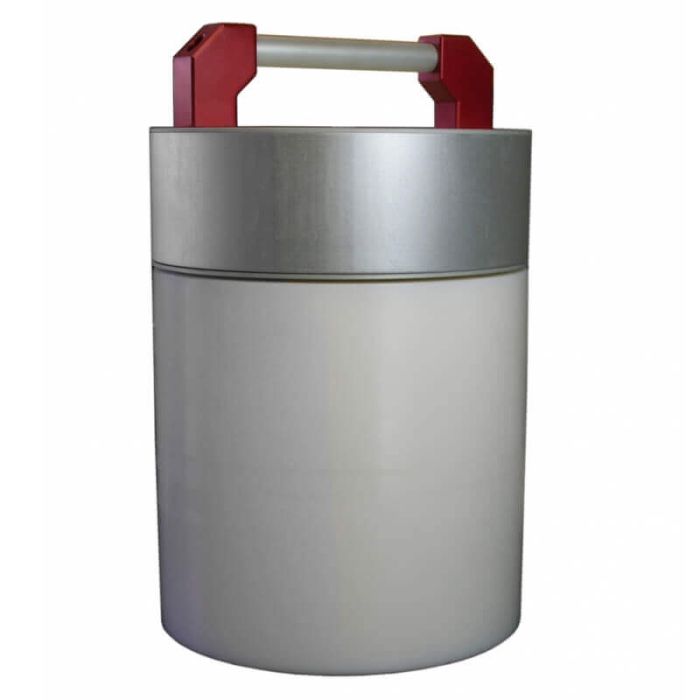

Neutron REM Counter for Pulsed Fields
LUPIN BF3-NP is an environmental monitoring unit for neutron H*(10) measurements, with unique excellent performance for neutron detection in pulsed fields.
The REM counter is composed of:
- BF3 neutron proportional counter
- Cylindrical moderating assembly
- Built-in power supply, signal management and control electronics
The electronics processes the signal from the detector and elaborates the instantaneous H*(10) rate value every second.
If required, the radiation-sensitive electronics can be housed in a separate rack, thanks to the modularity of the instrument components.
An accessory IP54 version is also available.
The data are sent to the connected SATURN ratemeter acquisition and control unit, which locally displays the instantaneous H*(10) rate and the integrated values and compares them to the pre-set alarm thresholds.
A LUPIN BF3-NP LITE version is also available, featuring a lighter build and a narrower energy range, suitable for all the applications that do not require to detect neutrons with energy above 20 MeV.
Key Features
- Only detector worldwide efficiently working in PF
- Modular electronics, high sensitivity
- Fully customisable for specific requirements
- From thermal up to 10 GeV or up to 20 MeV (LITE)
- Energy response fitting ICRP74 conversion curve
- Unaffected by signal pile-up
- Max H*(10) per burst in pulsed fields: 2 µSv
- Excellent gamma rejection (< 0.5 µSv/h @ 50 mSv/h)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Energy Range |
From 0.025 eV to 10 GeV (standard version) From 0.025 eV to 20 MeV (LITE version) |
| Built-in Electronics |
Watchdog: good functioning circuit control Available communications: serial RS232 (default), serial for long distance RS485/422, Ethernet up to 1 km |
| Dimensions | Ø = 250 mm, H = 425 mm |
| Options |
Lighter version and narrower energy range (LITE version) Radiation sensitive electronics installed in a separate rack Ultra-fast response (alarm signal in 50 ms): dual use as neutron rem counter – beam loss monitor |
| Accessories |
Traceable calibration Trolley kit: bare/unwired trolley for wheeled transport IP54 configuration Flight case |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
