Digital Ratemeters
The SATURN ratemeter is a compact acquisition and control unit, designed for managing and processing signals from any ELSE NUCLEAR connected detector.
The SATURN ratemeter is available in 3 versions:

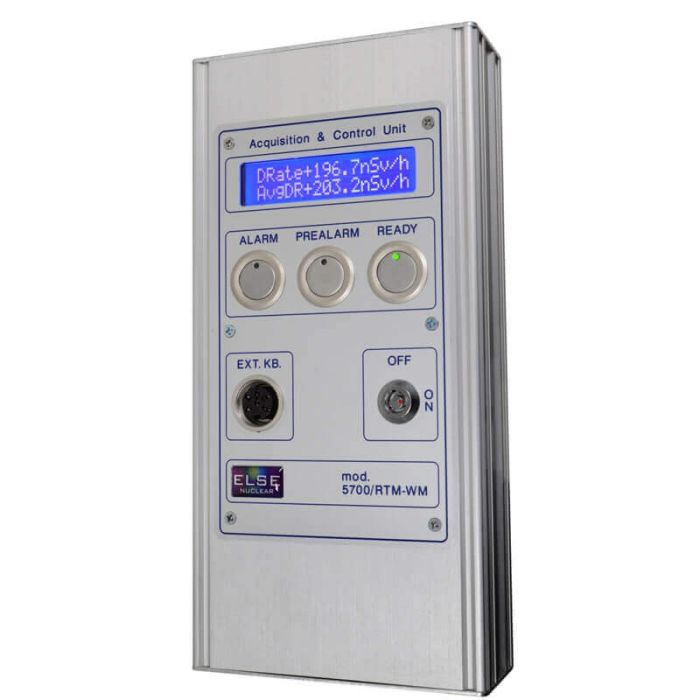

- SATURN I RTM-WM: standard wall-mounted version
- SATURN I RTM: 19” 2U rack version
- SATURN II: wall-mounting version compliant with “Good Manufacturing Practice” requirements (no external cable or connectors)
All the ratemeter versions feature local function buttons with status LEDs, an internal acoustic buzzer and a relay connector, used to manage external alarm columns or interlocks.
The SATURN ratemeter continuously acquires and processes the data coming from the connected detector, and compares results with user-defined alarm thresholds.
Two user-selected measurements can be displayed at the same time on the display, such as instantaneous or average count rate, dose rate, activity concentration, counts, and dose or activity-integrated values.
The user interface is accessible through an external keyboard, which allows local interaction with the full range of parameters (the advanced setting is password-protected). Measurements, thresholds and operating parameters are stored in an internal, non-volatile memory.
The ratemeter can communicate to and be remotely managed by a host PC through an Ethernet or RS485 network.
Key Features
- Compatible with all detectors
- Highly reliable acquisition & processing unit
- Advanced user interface
- 2-lines LCD display
- Real-time data management
- Internal and exportable data archive
- Luminous/acoustic status signalling
- Data communication to host PC: ETH or Serial
- External keyboard for parameters setting
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Temperature Range | -25 to +50°C |
| Technical Specifications |
NC/NO contacts for status remote signalling NO/NC interlock contact; TTL level for beam-on status input |
| Display Front Panel |
2x16 Alphanumeric LCD back-lit display Status LED: green = good operation; yellow = pre-alarm; red = alarm Internal alarm buzzer 3 Function Keys for quick data/parameters visualisation Connector for external keyboard |
| Acquisition Control Unit |
Dose rate measurements: instantaneous, 1 minute average and 1 minute maximum Integrated dose: referred to 10 minutes, 1 hour, 24 hours and total Watchdog circuit for self-diagnosis Interfaces: Ethernet 10/100 (up to 100 m), RS232 (up to 30 m), RS485/422 (up to 1 km) |
| Settable Parameters |
Detector type Measurement unit Alarm and pre-alarm thresholds Local acoustic alarm muting enabling Manual reset of alarms/failures/doses/all Alarm autoreset enabling Fail-limit levels Moving average settings Test mode with an external source for quality control purposes |
| Dimensions |
SATURN I RTM-WM: 109 x 225 x 46 mm SATURN I RTM: depth = 300 mm SATURN II: 157 x 71 mm, variable height |
| Weight |
SATURN I RTM-WM: 1 kg SATURN II: Variable weight |
| Accessories |
TOUCHKEY2 external keyboard ALU alarm unit for status signalling IP54 container (SATURN I RTM-WM) |
| Warranty | 12 month warranty as standard. Extension to 24 months available. |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
