Lung Counter
Lung Counter
ELSE NUCLEAR
Lungs Burden Analysis/Counting System
The LUNG COUNTER monitor has been designed to perform high-efficiency, fast and reliable radiometric controls of human lungs.

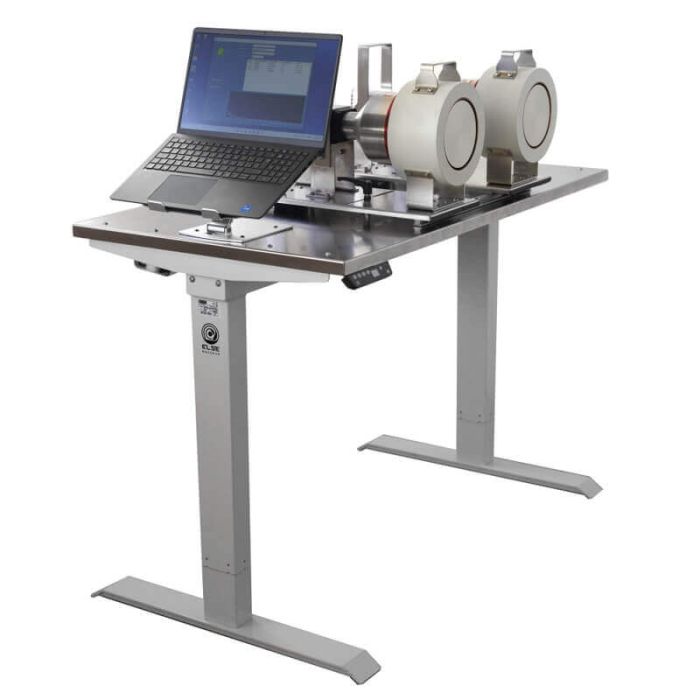

The monitor is composed of:
- A mechanical support table, featuring up/down movement to align the detectors to the desired height
- Two 5”×4” NaI(Tl) scintillators, mounted on a small rail allowing manual, independent, left/right movement of each detector
- A laptop with proprietary software managing the system
- A comfortable chair with armrests and footrest
The detectors include photomultiplier tubes, and they are coupled to independent electronic units providing high voltage to the PMTs, and dedicated MCA modules allowing on-line gamma spectrometry.
The system is controlled and managed by a proprietary software installed on a dedicated laptop.
The LUNG COUNTER software implements response function curves for each NaI(Tl) detector. These curves allow converting net counts rates acquired by the detectors (cps) in activity (Bq) homogeneously dispersed in the lungs, and to subsequently evaluate the committed effective dose (in Sv). The response curves are calculated by means of Monte Carlo simulations.
Key Features
- High-efficiency detection equipment
- Highly versatile scanning system for lungs
- Fast and simple measurement sequence
- Detectors: two 5” x 4” NaI(Tl) scintillators
- Compact MCA with 2048 channels
- Low-background lead shielding
- Efficiency curves evaluated by means of Monte Carlo calculations
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Energy Range | 30 keV - 3 MeV |
| Dimensions |
Table plane: 700 x 1200mm Table height: 1060 - 1510mm (incl. all components) |
| Detection Unit |
Detector type: 5” × 4” NaI(Tl) cylindrical scintillator crystals coupled to PMT Number of units: 2 Energy resolution (Cs-137): < 7% Compact MCA with 2048 channels Low-background lead shielding thickness: 50 mm rings with 1 mm thick Cu inserts Power supply: 230VAC, 50 Hz |
| Management Software |
Efficiency curves evaluated by means of Monte Carlo calculations Direct evaluation of homogeneously dispersed activity (Bq) in lungs, following the IDEAS guidelines’ models Customisable activity limits Customisable isotope library with default built-in isotopes commonly found in workplaces Customisable analysis reports and printing options Good functioning verification |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
