MBAL-0220CSP2
MBAL-0220CSP2
Marki Microwave

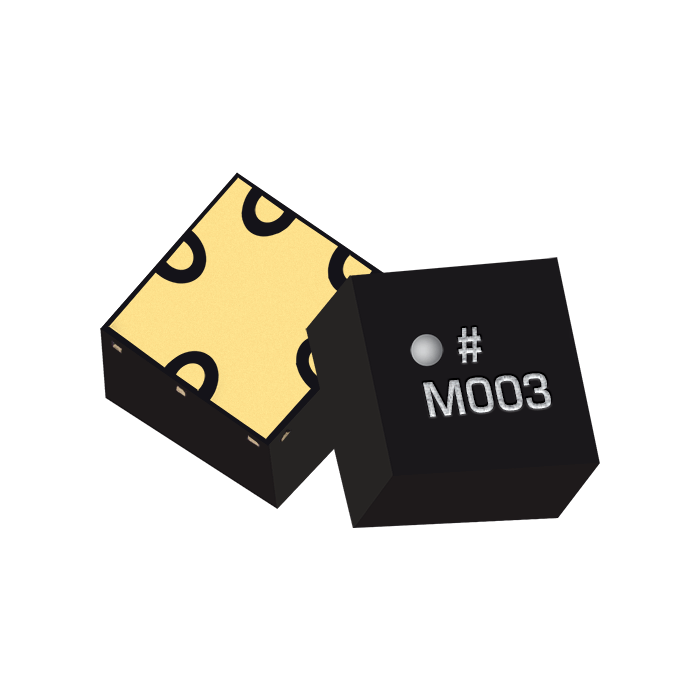

2-20 GHz Passive MMIC Chip Scale Package Balun
Surface Mount Balun with CSP2 Chip Scale Package Technology
Obtain die-level balun performance in a compact surface mount package using Marki Microwave’s CSP2 chip scale package technology. The MBAL-0220CSP2 is a GaAs passive MMIC balun featuring a frequency range of 2 to 20 GHz.
Designed in a leadfree, RoHS compliant CSP2 package, it is compatible with standard pick and place assembly. It is an ideal solution to interface into dataconverters for S-K band digital beamforming and other higher order Nyquist sampling applications, clock distribution, and balanced amplifiers.
MBAL-0220CSP2 Applications:
- Balanced Receivers
- Signal Integrity
- Analogue to Digital Converters
- Balanced Amplifiers
- Clock Distribution
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Family | Baluns |
| Key Features |
|
| Dimensions | 2.5 x 2.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
