RH-RR-KIT

RH-RR-KIT

Bird

Railway RF Cable & Antenna Analyzer Kit including FDR, DTF & Insertion loss tests.

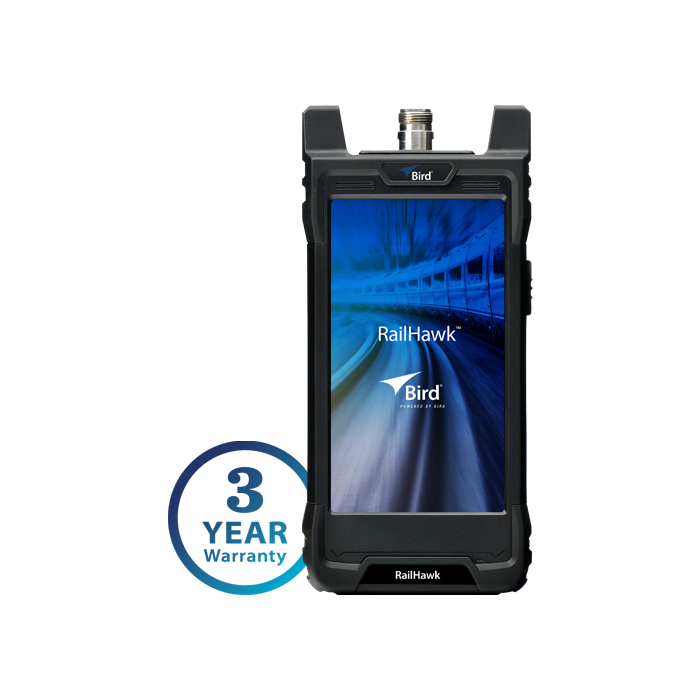

main product photo
Bird’s new Railway RF Cable & Antenna Analyzer solution provides a comprehensive kit that allows technicians to maintain high quality service networks in the railway industry. Based on the need for redundant communications, Bird’s Cable & Antenna Analyzer increases reliability and assures maintainability for communication protocols targeted in railway space. Designed to help novice and expert users, our easy-to-use analyzer finds problems before they become time-consuming, expensive repairs.
Bird’s RailHawk™ RF Railway Test Kit, is the result of combining the proven antenna and cable testing functionality of the SiteHawk handheld analyzer, Bird’s plug and play power sensor – designed specifically to test the UHF analog/digital radio systems, as well as the GSM-R/LTE-R voice/data systems - and all the necessary loads, adapters and cables into a single rugged transit case.
Avoid communication shortfalls, downtime and expense resulting from trial and error of swapping components to fix your issue.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Item Name RailHawk™, Railway RF Cable & Antenna Analyzer Kit
Languages English, Chinese, Spanish
Key Features
  • Test RF cables & antennas at the frequency of operation, not at DC where problems are masked.
  • Locate RF cable, connector & antenna problems at the source.
  • FDR (Frequency Domain Reflectometry) pinpoints faults at the frequency of operation, unlike other measurement techniques which can mask pending failures of critical system components.
  • Distance to Fault (DTF) mode can plot VSWR or Return Loss levels at each distance point along the cable and antenna system length.
  • Cable Loss function measures insertion loss of the cable system over a given frequency range.
  • OTG USB communication port for connection to Bird power sensors, storage devices and battery charging.
Frequency Range 1 – 6000 MHz
VSWR Range 1.0 to 65.0
Resolution 0.01 dB
Frequency Resolution 1 kHz
Frequency Accuracy ±2.5ppm @25 °C
Temperature Drift 0.01 dB/°F (0.02 dB/°C)
Compliances Compliance: CE
EMC: Standard EN 61326-1:2006
Output Power -10 dBm, typical
Trace Noise IFBW 1kHz: 0.05 dB rms
Storage Capacity Thousands of traces and setups
Calibration Period 2 years
Maximum Input Voltage 50V
Connectors USB Type-C, USB 3.0
Test Port Connector: N-type, Female 50 Ohms
Battery Type: Lithium-ion rechargeable
Operating Time: 10 hours typical
Charging Time: 5 hours typical
Temperature Range Operating: 14 to 131 °F (–10 to +55 °C)
Storage: -40 to 176 °F (-40 to +80 °C)
Battery Charging: 32 to 95 °F (0 to +35 °C)
Dimensions 7.7 in x 3.6 in x 2.4 in
(195 mm x 90 mm x 60 mm)
Display 5.5 in, 720 p
More Information
Attribute Value
Data Sheet Click here to view

Related Products

  1. FH-AV-BASIC

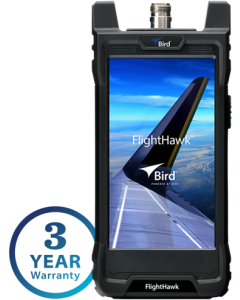

    FH-AV-BASIC
  2. SK-6000-TC

    SK-6000-TC
  3. SK-4500-TC

    SK-4500-TC
  4. FH-AV-KIT

    FH-AV-KIT
  5. 7003A001

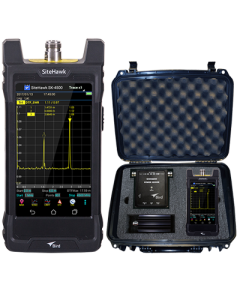

    7003A001
