Hioki
Electrode Resistance Measurement System
Quantify composite layer resistance and interface resistance in Li-ion battery electrode sheets

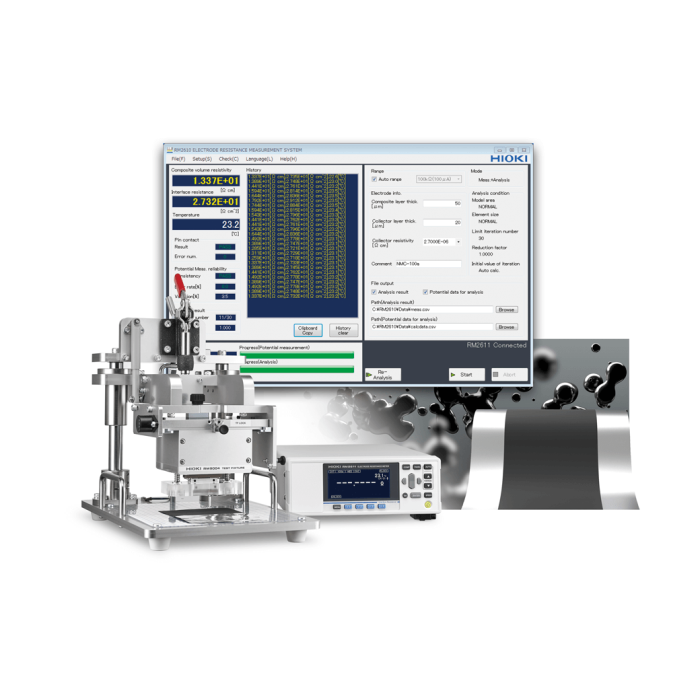

The RM2610 isolates and quantifies the resistance characteristics of electrode sheets, a major component of lithium-ion batteries (LIBs), as two components: the composite layer resistance and the interface resistance between the composite layer and collector. The system allows users to visualize these two quantities by measuring the surface of the electrode sheet with a test fixture that consists of an array of test probes and then using proprietary analytical techniques to quantify them. .
From Setup to Testing - Electrode Resistance Measurement System RM2610
The Hioki RM2610 separates the resistance of the positive and negative electrodes of lithium-ion batteries (LIB) into composite layer resistance and interface resistance (the contact resistance between the current collector and the composite layer) and quantifies the results for further analysis.
Key Features
- Measure composite resistivity [Ωcm]
- Measure interface resistance between the composite layer and current collector [Ωcm^2]
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | Temperature Sensor Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1 |
| Measurement Items | Positive and negative electrode sheets for rechargeable lithium-ion batteries |
| Measurement Time |
Contact check + potential measurement : approx. 30 sec. Calculation : approx. 35 sec. (on a PC with Intel core i5-7200U CPU) |
| Testing Current | 1 μA (min.) to 10 mA (max.) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
