ROM-2820

ROM-2820

Advantech

NXP i.MX 93 Cortex®-A55 OSM 1.1 Computer-on-Module

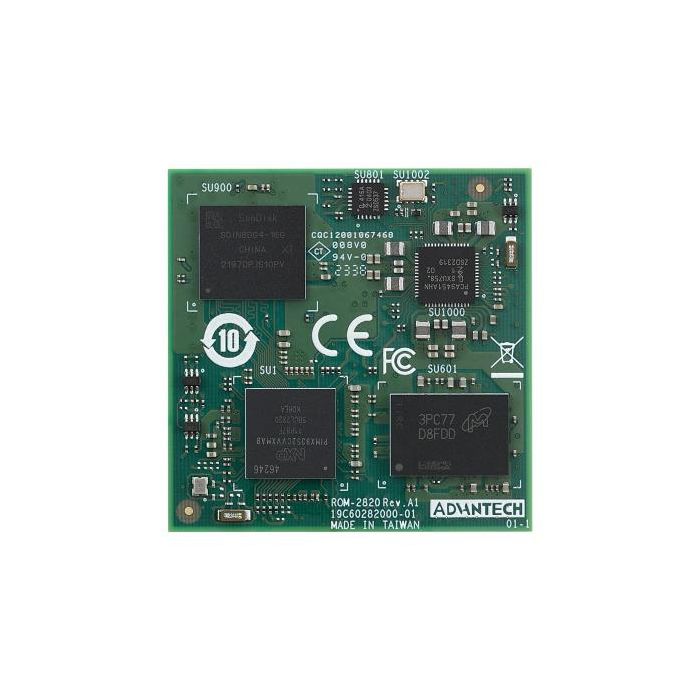

main product photo

NXP i.MX 93 Cortex®-A55 OSM 1.1 Computer-on-Module

Key Features

  • NXP i.MX 93 Cortex-A55 Dual-core (up to 1.7GHz)
  • 1 x Arm Cortex-M33 core
  • 1 x Ethos®-U65 microNPU
  • 1 x 2GB LPDDR4X up to 3733MT/s
  • 1 x 4 lane MIPI-DSI
  • 2 x USB 2.0
  • 5 x UART
  • 4 x I2C
  • 16 x GPIO
  • 2 x PWM
  • 2 x CAN-FD
  • Compact size form factor - OSM Size L (45 x 45 mm)
  • Support Ycoto Linux
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Interface

Serial Ports: 2 x RS232,
2 x RS232/422/485
Operating System Yocto Linux
Power

Power supply: 5V
Maximum: 2.1W
Memory

Technology: LPDDR4X 3733MT/s
Capacity: On-board LPDDR4 2GB
Flash: 1 x 16 GB eMMC NAND Flash for O.S
Processor

CPU: NXP i.MX 93 Cortex-A55 Dual-core
MCU: 1 x Arm Cortex-M33 core
Security NXP i.MX 93 integrated Trust Zone
Display

LVDS/MIPI-DSI: 1 x 4 lane MIPI-DSI or 1 x single channel LVDS (either one)
Graphic Engine: NXP integrated 2D Graphic Acceleration
Audio Mic-in, Line-out
I/O

USB: 2 x USB 2.0
Console Port: 1
SPI Bus: 1
CAN: 2
GPIO: 16
I2C: 2 + 2 (LVDS/MIPI-CSI)
Camera Input: 1 x 2-lane MIPI-CSI
PWM: 2
ADC: 2
Ethernet

Chipset: 2 x NXP i.MX 93 integrated RGMII
Speed: 2 x 10/100/1000Mbps
More Information
Attribute Value
Data Sheet Click here to view
