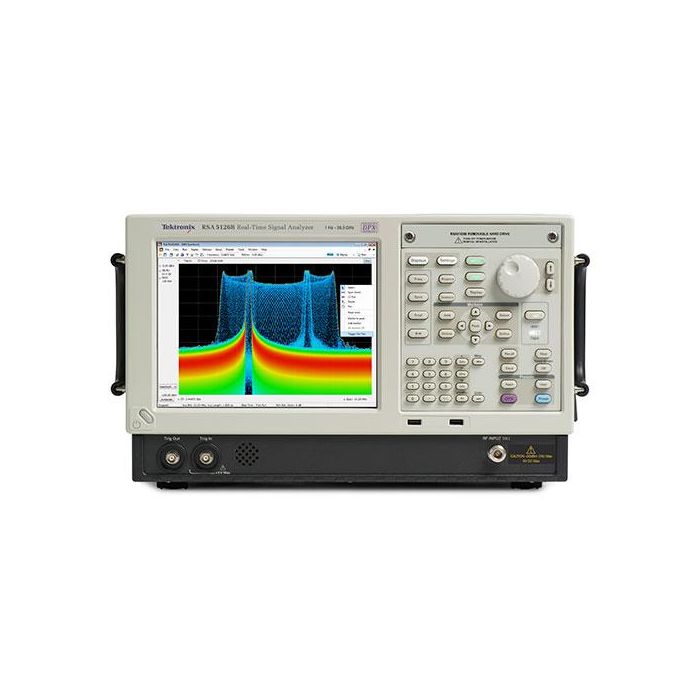

Visualise and characterise devices and components with precision and accuracy using the powerful, industry leading RSA5000B Series of Real Time Spectrum Analyzer. This advanced spectrum analyzer makes high performance and sensitivity measurements for spurious signals much faster than other spectrum analyzers, so you can conduct conventional measurements and troubleshoot quickly, accurately and successfully
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Amplitude, frequency, phase vs. time, DPX spectrum, and spectrograms
Correlated multi-domain displays
Performance options for best real time and dynamic range and analysis options offer added value
High dynamic range options offer unmatched 80 dBc spurious-free analysis in the widest acquisition bandwidth
High performance DPX offers industry-leading minimum signal duration for 100% probability of intercept
Optional software applications to add dedicated measurements for specific applications and standards
AM/FM/PM modulation and audio measurements (Opt. 10)
Phase noise and jitter (Opt. 11)
Automated settling time measurements (frequency and phase) (Opt. 12)
More than 30 pulse measurements, acquisition of more than 200,000 pulses possible for post analysis and cumulative statistics. (Opt. 20)
General purpose modulation analysis of more than 20 modulation types (Opt. 21)
Simple and complete APCO Project 25 transmitter compliance testing and analysis for Phase 1 (C4FM) and Phase 2 (TDMA) (Opt. 26)
WLAN analysis for 802.11 a/b/g/j/p, 802.11n, and 802.11ac (Opts. 23, 24, 25)
Noise figure and gain measurements (Opt. 14)
Bluetooth® Analysis (Opt. 27 and Opt. 31)
Manual and automatic measurement mapping plus signal strength function provides audio tone and visual indication of received signal strength (Opt. MAP)
LTE™ FDD and TDD Base Station (eNB) Transmitter RF measurements (Opt. 28)
The 5G NR analysis is supported on Windows 10 (RSA5BUP Opt. 5GNR)
Signal Classification and Survey
EMC/EMI pre-compliance and troubleshooting (Opt. 32)
Maximum Frequency
26.5 GHz
Real Time Bandwidth
25 MHz, 40 MHz, 80 MHz, 125 MHz and 165 MHz
Minimum Event Duration for 100% POI
0.434 μs
SFDR
-80 dBc
Key Performance Specifications
+17 dBm 3rd order intercept at 2 GHz
±0.3 dB absolute amplitude accuracy to 3 GHz
Displayed average noise level: –142 dBm/Hz at 26.5 GHz, –157 dBm/Hz at 2 GHz and –150 dBm/Hz at 10 kHz
Internal Preamp available: DANL of -156 dBm/Hz at 26.5 GHz, -167 dBm/Hz at 2 GHz
Phase noise: –113 dBc/Hz at 1 GHz and –134 dBc/Hz at 10 MHz carrier frequency, 10 kHz offset
High-speed sweeps with high resolution and low noise: 1 GHz sweeps at 10 kHz RBW in <1 second
Real time spurious free dynamic range of 80 dB with HD options
Frequency Range
1 Hz to 26.5 GHz
Applications
Wideband radar and pulsed RF signals
Frequency agile communications
Broadband satellite and microwave backhaul links
Education
Long Term Evolution (LTE), Cellular
5G NR Cellular base station or user equipment transmitter test
