RSA607A

RSA607A

Tektronix

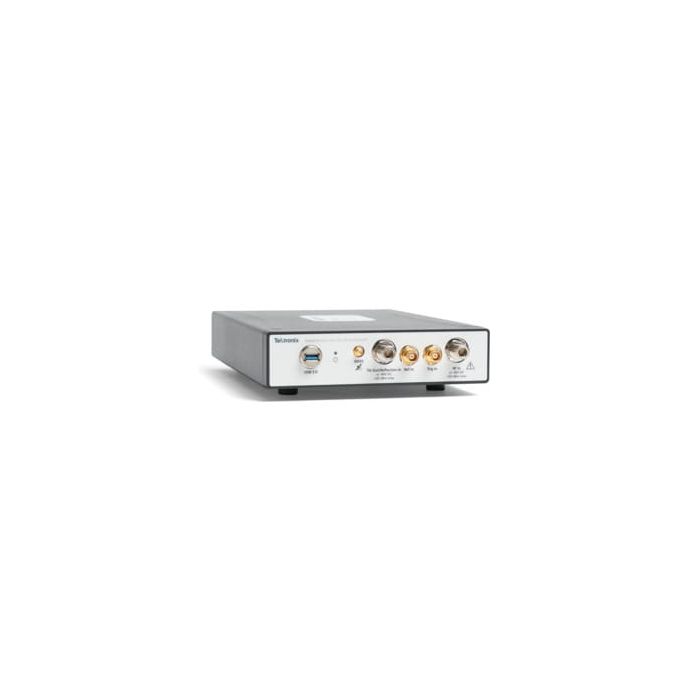

RSA607A 9 kHz-7.5 GHz Laboratory Spectrum Analyzer

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Manufacturer Product Family RSA600
Key Features
  • 9 kHz to 3.0/7.5 GHz frequency range covers a broad range of analysis needs
  • 40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
  • Amplitude accuracy of 0.2 dB to 3 GHz (95% confidence)
  • High speed full-span sweeps (25.0 GHz/sec) for fast setup and discovery
  • Standard GPS/GLONASS/Beidou receiver
  • Optional tracking generator for gain/loss, antenna and cable measurements
  • DataVu-PC software enables multi-unit recording in variable bandwidths
  • SignalVu-PC software offers real time signal processing with DPX® Spectrum/Spectrogram to minimize time spent finding transient problems
  • EMC/EMI pre-compliance and troubleshooting - CISPR detectors, predefined standards, limit lines, easy accessory setup, ambient capture, failure analysis, and report generation
  • 15 μsec minimum signal duration with 100% probability of intercept ensure you see problems first time, every time
  • Application programming interface included for development of custom programs
Maximum Frequency 7.5 GHz
Real Time Bandwidth 40 MHz
Minimum Event Duration for 100% POI 100 μs
SFDR 70 dBc
Frequency Range 9 kHz to 7.5 GHz
Applications
  • Characterization of RF devices, subsystems, and systems
  • Manufacturing test
  • Mobile field operations
  • EMI/EMC compliance testing and troubleshooting
More Information
Attribute Value
Data Sheet Click here to view
