Z14I-DX3

Z14I-DX3

Durabook

Rugged Triple-Screen Workstation - Three Screens, Edge AI, One Command Workspace.

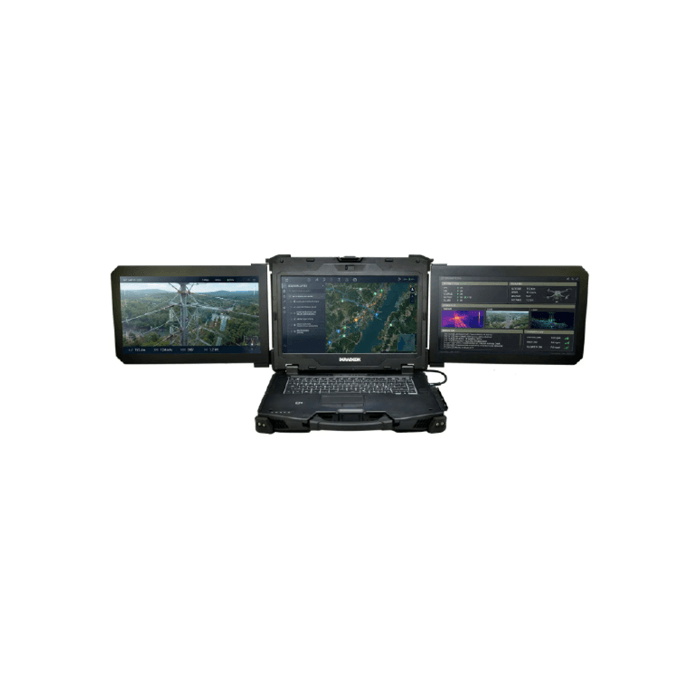

main product photo

Three Screens. Edge AI. One Command Workspace.

Bring a complete command workspace into the field. The Durabook Z14I-DX3 extends a fully rugged laptop into a portable rugged workstation for mobile command and field operations. Its integrated triple-display system and Edge AI computing support video, mapping, telemetry, communications and reporting, while comprehensive I/O and configuration options for PCIe expansion, dedicated graphics or RAID storage adapt the system to operational requirements.

Integrated Triple-Screen Workspace

Three 14-inch Full HD displays keep maps, video and operational data in view.

Workstation-Class Edge AI

Intel® Core™ Ultra processing and optional NVIDIA® graphics support compatible AI workloads.

Portable & Deployable

Both expansion displays stay attached, folding inward for transport between operating locations.

Key features

  • Tri-Fold Triple Screen for an expansive multi-screen workspace
  • 14.0” FHD DynaVue® sunlight readable display with 1200 nits
  • Intel® Core™ Ultra processor with integrated NPU AI engine
  • Built to MIL-STD-810H standards for field environments
  • Extensive connectivity including Thunderbolt™ 4, LAN, Serial, and more
  • Standard backlit keyboard for reliable operation in low-light conditions
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Processor
  • Intel® Core™ Ultra 7 165U (12MB Cache, up to 4.9 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)
  • Intel® Core™ Ultra 7 155U (12MB Cache, up to 4.8 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)
  • Intel® Core™ Ultra 5 135U (12MB Cache, up to 4.4 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)
  • Intel® Core™ Ultra 5 125U (12MB Cache, up to 4.3 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)
Display

3x 14.0” FHD (1920 x1080)
1200 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Camera

Integrated 2.0 MP web-cam with shutter design
Optional 5.0 MP IR camera for Windows Hello1
Graphics

Intel® Graphics
Optional NVIDIA® RTX A5001,3
Optional NVIDIA® RTX 3500 Ada with 12GB GDDR6 memory1,3
Optional NVIDIA® RTX 5000 Ada with 16GB GDDR6 memory1,3
I/O Ports
  • Thunderbolt 4 (type C) x 1
  • USB 3.2 Gen2 (type A) x 1
  • USB 3.2 Gen1 (type A) x 1
  • USB 2.0 (type A) x 1
  • Audio in/out (combo jack) x 1
  • microSD card (microSDXC) x 1
  • 10/100/1000 Ethernet (RJ45) x 2
  • VGA port (D-sub,15-pin) x 1
  • HDMI port (type A) x 1
  • Serial port (RS232/RS422/RS485: D-sub,9-pin) x 2
  • Docking connector (41-pin Pogo) x 1
  • Dual SIM (Nano SIM & eSIM)
  • Smart card reader x 1
  • ExpressCard 54 x 1
  • DC-In jack x 1
  • OptionalRF antenna pass-through for GPS, WWAN, and WLAN
Media Bay Expansion Slot

One option:
Optional DVD super Multi
Optional 2nd battery
Optional SATA SSD
Memory 2 slots 16GB up to 64GB (5600MHz DDR5)
Notes

1. Ask a member of our team for feature availability.

2.Weight and dimension vary with options.

3.For optimal graphics performance, an upgrade of the system memory to 32GB or higher and the SSD capacity to 512GB or higher is recommended.

4. Mutually exclusive options.
Operating System Windows® 11 Pro 64-bit
Operating Temperature

-29°C ~ 63°C / -20°F ~ 145°F
Rugged Specifications
  • MIL-STD 810H certified (Shock, Vibration, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation)
  • MIL-STD 461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
  • Magnesium alloy chassis
  • Port covers
  • Removable quick-release battery
  • Two removable quick-release storage drives
  • Sunlight readable display
Security
  • Intel® vPro™ Technology
  • Secured-Core PC1
  • TPM 2.0
  • NIST BIOS compliant
  • Easy removable SSD
  • Smart card reader
  • Stealth mode
  • Night vision mode
  • Kensington lock
  • Optional Windows Hello1
  • Optional fingerprint scanner
  • Optional LF/HF-RFID (NFC) reader1
Storage
  • 256GB NVME PCIE SSD
  • Optional 512GB/1TB/2TB PCIE SSD
  • Optional OPAL 2.0 SSD
  • Optional 2nd storage NVME PCIE SSD
  • Optional 3rd storage SATA SSD1
Storage Temperature

-51°C ~ 71°C / -60°F ~ 160°F
Warranty 3-year limited warranty standard
Wireless Connectivity

Intel® Wi-Fi 7 BE200 (802.11 be)
Bluetooth® V5.4
Optional dedicated GPS module (UBLOX-NEO-M9N)
Optional 4G LTE multi-carrier mobile broadband
Optional 5G
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Power

AC adapter: 100-240V, 50Hz-60Hz, 210W
Main battery Li-Ion, 10.8V, 6900mAh
Optional 2nd battery Li-Ion 10.8V, 4700mAh
Additional battery for screens : Li-Ion, 14.4V, 6700mAh
Dimensions

391 mm (L) x 298 mm (W) x 137.5 mm (H)2
Weight

9.8 kg2
