Z14I

Z14I

Durabook

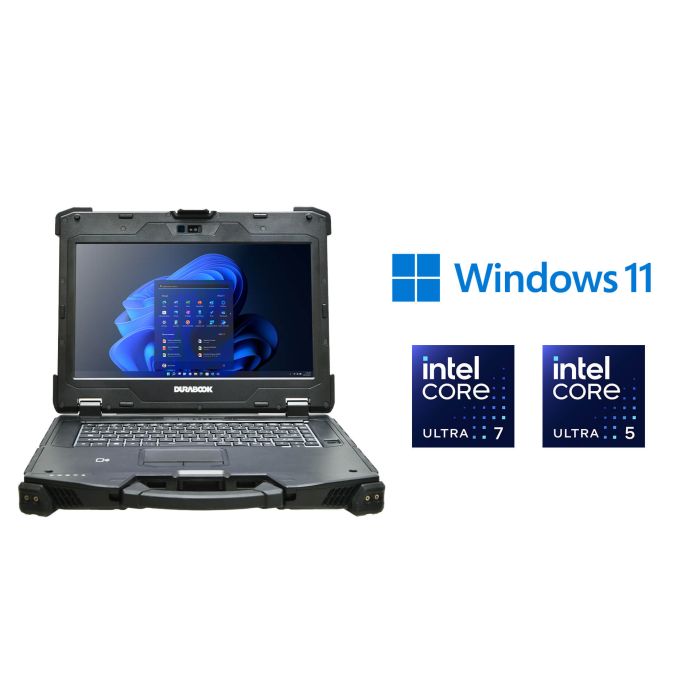

As strong as it gets with boundless customisation. Rugged Laptop with Intel® Core™ Ultra 7/5 processor

Unlock New AI PC Experiences With the Durabook Z14I Fully Rugged Laptop Powered by Intel® Core™ Ultra Processors and NVIDIA RTX™ A500 GPU

The Z14I provides the latest Intel® Core™ Ultra platform with an integrated NPU AI engine, designed specifically to support demanding artificial intelligence (AI) applications in the field. Now equipped with Intel® Core™ Ultra 5/7 processors with integrated neural processing unit (NPU) and optional NVIDIA RTX™ A500 professional GPU, the 14” portable device introduces a powerful and performance-packed AI PC that meets the demands of modern-day AI-intensive tasks for professional users right at the edge.

Built for all environments

The Durabook Z14I has been built to withstand even the harshest of environments. Its IP65 rating, protection against dust and water ingress, MIL-STD 810H certification and resistance up to six feet drop make the Z14I more rugged than other comparable devices on the market. The device has also been tested for explosive atmosphere, solar radiation, salt fog, and fungus resistance, which goes beyond testing standards compared to other rugged devices in its class.

The Z14I includes Durabook’s proprietary DynaVue® technology and high-definition multi-touch screen, offering the highest contrast ratio, which helps to eliminate internal reflections that enhance viewing clarity even from different angles, and in bright sunshine or low light conditions.

Comprehensive Technical Support from APC Technology Group

For more extensively customised products, APC’s team of defence-grade computing specialists can assist customers with creating bespoke solutions. From boards, and displays to chassis, Durabook and APC can build to your requirements quickly and economically, backed by comprehensive product servicing and support from APC's UK-based team.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Official Durabook rugged tablet and laptop accessories

As an authorised Durabook distributor, our team can advise on a comprehensive range of accessories designed to boost productivity for Durabook's rugged mobile computing solutions. From docking stations and replacement batteries to screen protectors - APC has accessories to keep you working in the field for longer.

More Information
Attribute Value
Processor Intel® Core™ Ultra 7/5
Graphics
  • Intel® Iris® Xe Graphics
  • Optional NVIDIA® GEFORCE GTX 10501
Storage

Main: 256GB/512GB/1TB NVME PCIE SSD

  • Optional 256GB/512GB/1TB SATA SSD
  • Optional OPAL 2.0 SSD
  • Optional 2nd/3rd storage (SATA SSD)1
Display

14.0” FHD (1920 x 1080) with 1000 nits DynaVue® Technology

Touchscreen

Multi-Touch

Camera
  • Optional 2.0 MP with shutter design
  • Optional IR camera for Windows Hello
Additional Key Buttons

2 (user-definable)

Security
  • Intel® vPro™ Technology
  • TPM 2.0
  • Easy removable SSD
  • Stealth mode
  • Smart card reader default
  • Night vision mode
  • Optional Windows Hello
  • Optional fingerprint scanner
  • Optional HF/LF RFID reader"
Wireless Connectivity
  • Integrated 10/100/1000 Ethernet
  • Intel® Wi-Fi 6 AX201 (802.11 ax)
  • Bluetooth® V5.2

Additional Options:

  • Dedicated GPS module (UBLOX-NEO-M8N)
  • 4G LTE multi-carrier mobile broadband
  • RF antenna pass-through for GPS, WWAN, and WLAN
Media Bay / Expansion Slot
  • Optional DVD super multi
  • Optional 2nd battery
  • Optional 3rd storage
  • Optional PCI-Express 3.0 (2 slots)13
  • Optional discrete VGA13
  • Optional military-grade connectors
  • Optional storage extension13
Hot-Swappable Battery

Optional

Drop Rating

6 ft

IP Certified

IP 65

ANSI/ISA 12.12.01 Yes
Removable Quick-Release Storage

Yes

Aluminum-Magnesium Alloy Chassis

Yes

Fanless Design

Yes

I/O Ports
  • Thunderbolt 4 x 2
  • USB 3.2 Gen2 (type A) x 1
  • USB 3.2 Gen1 (type A) x 1
  • USB 2.0 (type A) x 1
  • RJ-45 x 2 / RS-232 x 2
  • HDMI / VGA
  • Dual SIM / microSD card
  • Smart card reader
  • ExpressCard 54
Rugged Specifications MIL-STD 810H certified
  • Drop
  • Shock
  • Vibration
  • Rain
  • Dust
  • Altitude
  • Freeze/Thaw
  • High/Low Temperature
  • Temperature Shock
  • Humidity
  • Explosive Atmosphere
  • Solar Radiation
  • Salt Fog
  • Fungus Resistance

MIL-STD-461G certified

  • Conduction
  • Radiation
  • Conducted Susceptibility
  • Radiated Susceptibility
Processor Intel® Core™ Ultra 7/5
Display

14.0” FHD (1920 x 1080) with 1000 nits DynaVue® Technology

Operating System Windows® 11 Pro 64-bit
Key Features
  • AI PC, equipped with Intel Core Ultra CPU
  • More Rugged than Ever – IP 66 & 6-foot drop
  • MIL-STD 810H certified additionally for Explosive Atmosphere, Solar Radiation, Salt Fog & Fungus Resistance
  • Coolfnity™ Fanless Design – less failure rate and free-of-noise
  • Rich of various I/O Interfaces:
    • 2x Thunderbolt 4
    • 2x RJ-45 & 2x RS-232 ports
    • Dual SIM (Nano-SIM + eSIM)
  • Tremendous Expansion Capability – Expansion units & Military connectors
Notes
  1. Contact your sales representative for feature availability.
  2. Tested using the MobileMark 2014 battery life benchmark. Results may vary under different
  3. situations including hardware configuration, software, operating conditions, power
  4. management settings and other factors.
  5. The system will stay operating within 300 seconds when user swaps the battery.
  6. Weight and dimension vary with options.
  7. One serial port supports RS422/RS485.
  8. Mutually exclusive options.
Sector
Warranty 3-year limited warranty as standard
Storage Temperature

-51°C ~ 71°C / -60°F ~ 160°F

Operating Temperature

-20°C ~ 60°C / - 4°F ~ 140°F

Battery Life 16 (up to 25 hours with optional 2nd battery)
Memory

2 slots 8GB up to 64GB (3200MHz DDR4)

Dimensions 356 mm (L) × 280 mm (W) × 50 mm (H)⁴ 14.02” (W) × 11.02" (D) × 1.97” (H)⁴
Power Supply
  • AC adapter : 100-240V, 50Hz-60Hz, 90W
    • Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
  • Main battery Li-Ion, 10.8V, 7800mAh, 16 hours2
    • Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2
    • Optional bridge battery: 5 minutes swap time3
