3DLT163245US1696
3DLT163245US1696
3D Plus

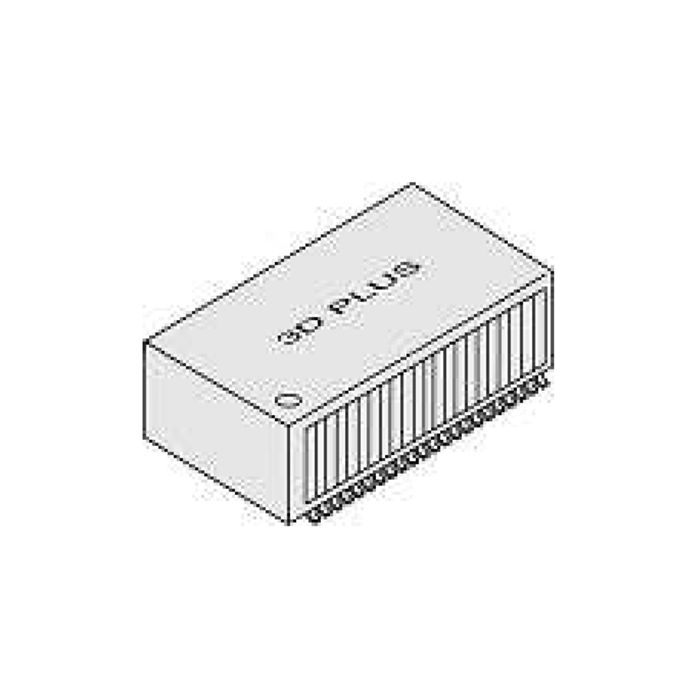

1.8V to 3.3V bidirectional Level Shifter, 32-bit Transceiver LVTLS Module
The 3DLT163245US1696 is a rad-hard advanced high speed CMOS, Schmitt trigger 32-bit (Dual 16-bit) bidirectional multi-purpose transceiver with 3-state outputs, cold sparing and bus hold capacity.
Designed for use as an interface between a 3.3V bus and a 1.8V bus in mixed 1.8V/3.3V supply systems, it achieves high-speed operationwhile maintaining the CMOS low-power dissipation. All pins have cold spare buffers to change them to high impedance when VCC is tied to ground.
This module is intended for two-way asynchronous communication between the data buses. The direction of the data transmission is determined by the DIR input. The 3DLT163245US1696 is packaged in an 82 pin SOP.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | LVT |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Pin Assignment | SOP 82 - Pitch 0.50 mm |
| Temperature Range |
|
| Power Supply | 1.8V - 3.6V |
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
