SH-60S-AOA
SH-60S-AOA
Bird
Handheld Spectrum Analyzer

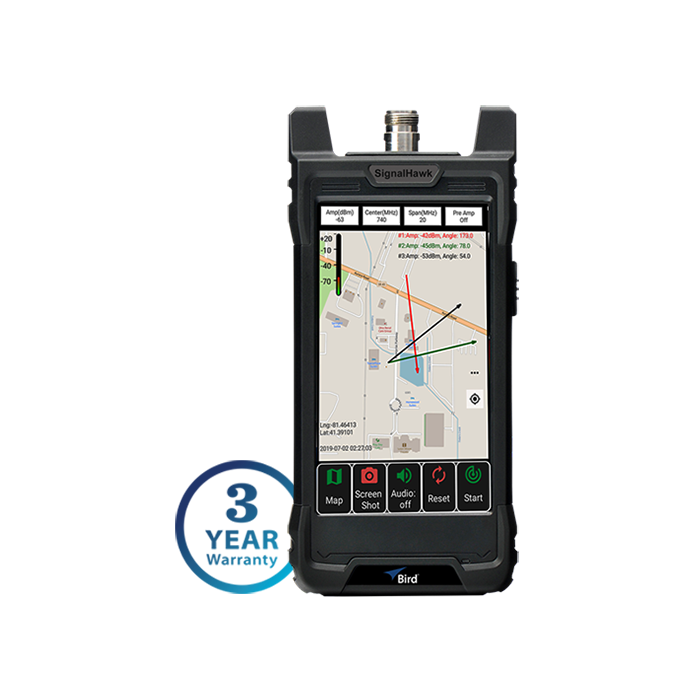

The SH-60S-AOA provides the ability to triangulate the location of an interferer on a map for signals between 9 kHz and 6 GHz. Integrating digital maps, GPS location and signal strength vectoring, the SignalHawk AOA provides an easy-to-use interface to pinpoint potential in-band interferers, “rogue” broadcast locations and dead spots.
Field engineers, technicians, wireless equipment manufacturers, service providers, contractors, and military personnel can triangulate the source of an interferer by utilizing our AOA (Angle of Arrival) technology. Being highly portable allows the user to go remote locations to accurately pinpoint the signal origination. In today’s crowded RF spectrum this cutting edge technology can quickly and efficiently stop unwanted, accidental or prohibited interface that can degrade RF communication or completely disrupt signal quality and system performance.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
SH-60S-AOA Specifications
- Leverages mapping technology from OpenStreetMap allowing users to triangulate the source.
- Two level internal preamplifier.
- View the spectrum with trace display, spectrogram display, or both.
- Easy-to-use, intuitive menus with multi-touch operation.
- More than 2x faster sweep times than the competition with multi-touch technology.
- High-resolution, full-color display for indoor or outdoor viewing.
- Rugged and weather resistant.
- 5 hours of continuous battery operation.
- Includes the Bird RF Meter App for interoperability with a wide range of Bird Field sensors.
| Attribute | Value |
|---|---|
| Product Brand Name | Hand-Held Spectrum Analyzer |
| Manufacturer | Bird |
| Video URL | https://youtu.be/efARZR7DsWU |
| Languages | English, Chinese |
| Standard Accessories | Hard Carrying Case, Soft Carrying Case, AC Adapter (12 Vdc Ouput), Stylus, USB Drive, USB Adapter, Manual and Battery |
| Frequency Range | Range: 9 kHz to 6 GHz, Span Accuracy: ±1% |
| Predefined Measurements |
|
| Aging | ±1 ppm |
| Sweep Time | 1.1 ms to 1600 s Full Span, 2.69 ms to 1600 s Settable Zero Span |
| Resolution Bandwidth | 10 Hz to 5 MHz in 1, 2, 3, 5, 10 Steps, Accuracy: ≥1 MHz, ±10% (<1 MHz, ±2%) |
| Second Harmonic Distortion | 1.6 GHz -70 dBc |
| Third Order Intercept | +15 dBm (–10 dBm tones , 1 MHz apart, Preamp Off, Reference Level –10 dBm) |
| Phase Noise | -95 dBc/Hz,@10 kHz (typical -97 dBc/Hz), -115 dBc/Hz,@1 MHz (typical -116 dBc/Hz) |
| Measurement Range | DANL to +20 dBm |
| Input Attenuator | Range: 0 to 30 dB, 1 dB step, Uncertainty: ±0.6 dB |
| Max Safe Input Level | Preamp Off: +30 dBm, Preamp -20 dB: 0 dBm, Preamp +40 dB: -20 dBm |
| RBW Switching Uncertainty | ±0.3 dB |
| Display Average Noise Level | Preamp Off: 1 GHz, -129 dBm/Hz (typical -132 dBm/Hz), Preamp +20 dB: 1 GHz, -149 dBm/Hz (typical -152 dBm/Hz), Preamp +40 dB: 1 GHz, -168 dBm/Hz (typical -169 dBm/Hz), (Input terminated, Detector set to Positive, Trace Average set to 1000, Span set to 50 kHz, Reference level of -100 dBm, all other settings auto-coupled, 23±5 °C normalized to 1 Hz RBW) |
| Residual Responses | -75 dBm |
| Amplitude Accuracy | ±1.5 dB (ATT set to 0 dB , input signal -5 to -30 dBm, Detector set to Positive, Sensitivity set to Low, RBW auto-coupled, all other settings auto-coupled, 23±5 °C. Half hour warm-up required.) |
| Reference Level Accuracy | ≥ -60 dBm, ±0.8 dB |
| Operating System | Android |
| P1dB | +5 dBm (nom) |
| Display Type | 5.5 inch, 1280 x 720 pixel |
| Connectors | RF In: N (Female), USB: USB type C, Power Interface: Slim Tip, DC 20V |
| Battery | Type: Li-ion, Operating Time: 5 hours (typ), Charge Time: 6 hours (typ) |
| Temperature Range | Operating: 0 to 50°C, Storage: -20 to 70°C |
| Dimensions | 7.8" x 3.7" x 2.4" (197 x 93 x 61 mm) |
