SME-8310
SME-8310
Hioki

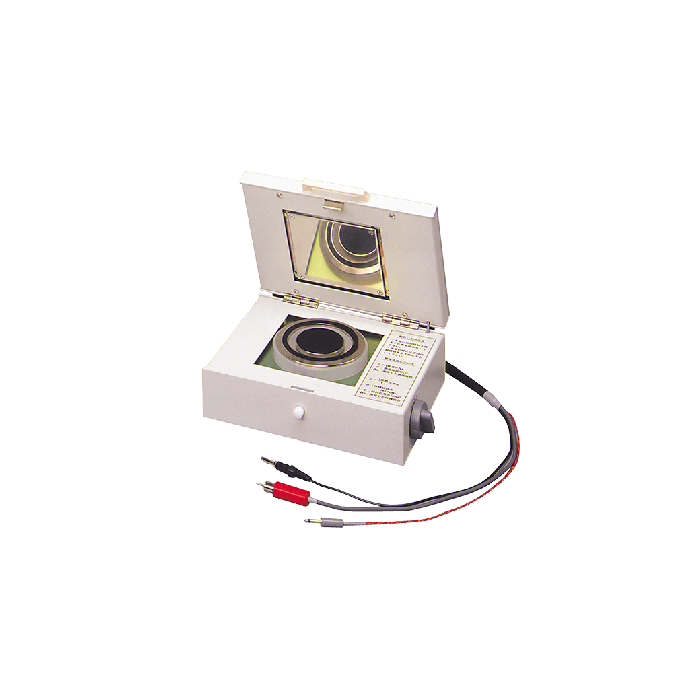

Plate Sample Electrode
Measure the Resistivity of Plate Samples Efficiently
Hioki Super Megohmmeters are high insulation resistance meters designed to measure the electrical resistance of insulation materials with high insulating properties. The SME-8310 is an electrode for measuring the surface and volume resistance of flat samples in conjunction with the SM7000 Series.
Sample of 100 mm square by up to 8mm in thickness is measurable. The main electrode dia. is 50 mm and inner & outer dia. of ring electrode are 70 mm and 80 mm respectively. Measurement voltage becomes ""OFF"" while the lid is open to ensure safety. A selector switch allows selection of voltage or surface resistivity.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Dimensions and Weight |
215 mm (8.46 in) W × 78 mm (3.07 in)H × 165 mm (6.50 in)D |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
