SOM-5790
SOM-5790
Advantech

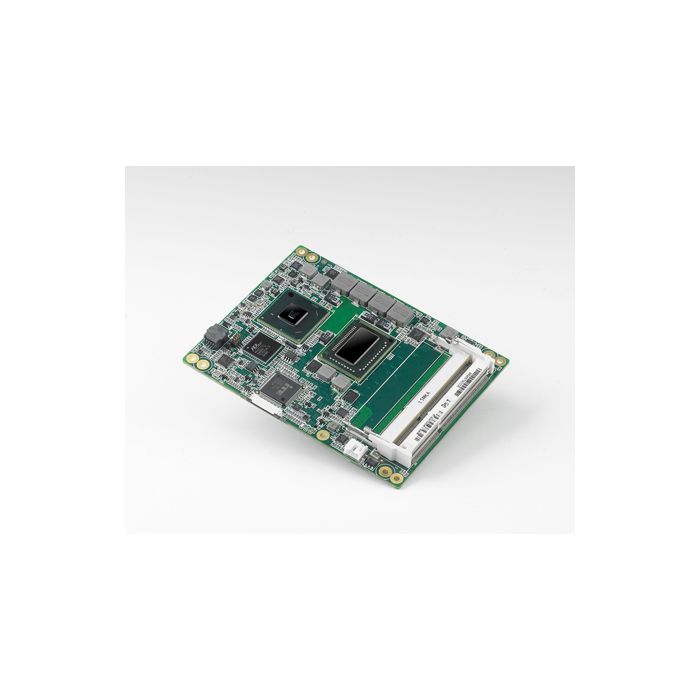

2nd Gen Intel Core Processor COM Express Basic Module
COM Express Basic Type 2 is a legacy specification, support PCI, IDE, LVDS and VGA for legacy applications; also has high speed I/Os interface includes PCIe and SATA.
For other specifications and customisation options, please see datasheet
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | COM Express 2.0 Basic Module |
| Sub Category | Type 2 |
| Supply Voltage | +12 V and +5 VSB for ATX, +12V for AT |
| CPU | i7-2715QE |
| Frequency | 1066/1333 MHz |
| USB 2.0 | 8 Ports |
| Graphics Controller | Intel GPU integrated in Core i7, Core i5, or Core i3 |
| Audio | HD Audio |
| Pin Out Type | Type 2 Pin-out |
| Base Frequency | 2.1 GHz |
| LLC | 6 MB |
| System Chipset | Intel QM67 |
| BIOS | AMI EFI 64Mb |
| Max Memory Capacity | 16 GB |
| Memory Socket | Dual 204P SODIMM |
| Display Chipset | Intel GPU integrated in Core i7, Core i5, or Core i3 |
| VGA | up to 2048 x 1536 |
| LCD | Single and dual channel 18/24-bit LVDS |
| PCI Express x16 | 1 PEGx16 |
| PCI Express x1 | 5 PCIex1 |
| PCI Express for BMC | Yes |
| eSPI | Yes |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| Gigabit Ethernet |
Controller: Intel 82579LM
Speed: 10/100/1000 Mbps |
| PATA | 1 x EIDE (UDMA 100) |
| SATA | 2 x SATAIII (6.0 Gb/s), 2 x SATAII (3.0 Gb/s) |
| GPIO | 8-bit GPIO |
| Power Type | ATX, AT |
| Power Consumption (Max) |
+12 V @ 3.34 A (2715QE)
+12 V @ 2.96 A (2655LE) +12 V @ 2.84 A (2515E) |
| Power Consumption (Idle) |
+12 V @ 0.95 A (2715QE)
+12 V @ 0.63 A (2655LE) +12 V @ 0.68 A (2515E) |
| Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Memory | DDR3 |
| Watchdog | 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer |
| Product Type | COM Express Basic |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 125 x 95 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
