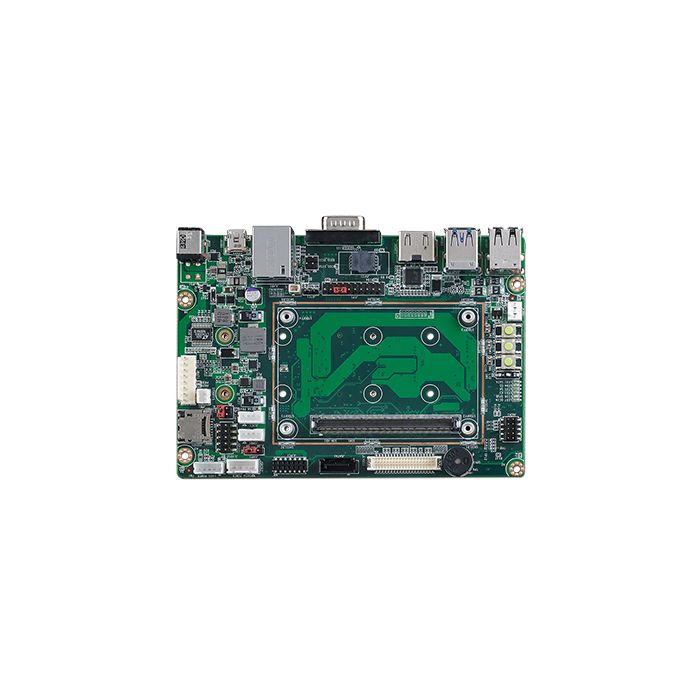

3.5" Application Board for COM Express R2.1 Type 10 Modules

Advantech Application Board is application-oriented development board which provides a schematic reference to reduce design effort at the development stage.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • 3.5" form factor compatible
  • Compatible to COM Express R2.1 Type 10 pin-out module
  • Wide 8.5V~20V adaptor input support AT & ATX mode
  • Smart battery charger support 2,3,4 cell battery
  • mini-PCIe, mSATA, USB3.0, USB Client, and CAN Bus supported
Form Factor COM Express Mini Module
USB 3.0 2 (Compatible with USB2.0)
USB 2.0 2
COM Port TX,RX (Optional for CAN Bus)
HDMI 1
Audio Mic-in, Line-in, Line-out
SIM Card Slot 1
Pin Out Type Type 10 pin-out Compatible
LCD 1-CH 18/24-bit LVDS (optional 4-Lane eDP)
LPC Yes
SMBus Yes
I²C Bus Yes
Gigabit Ethernet 1 (10/100/1000MHz)
SATA 1
USB Client 1
SDIO 1
Smart Fan 1
Power Button Connector 1
Charger IC LTC4100, Compliant with Smart Battery System (SBS) v1.1
Support Battery Type Li-ion/Li-PR (3.5-4.2V per cell); 3-cell (12.6V) or 4-cell (16.8V)
LiFePO4 (2.7-3.6V per cell); 3-cell (10.8V) or 4-cell (14.4V)
Power Type DC: 8.5~20V
ATX: 12V
Storage Temperature -40 ~ 85° C (-40 ~ 185° F)
Operating Temperature 0 ~ 60° C (32 ~ 140° F)
Battery 1
Product Type Application Board
Humidity Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing
Dimensions 146 x 102 mm
More Information
Attribute Value
Data Sheet Click here to view
