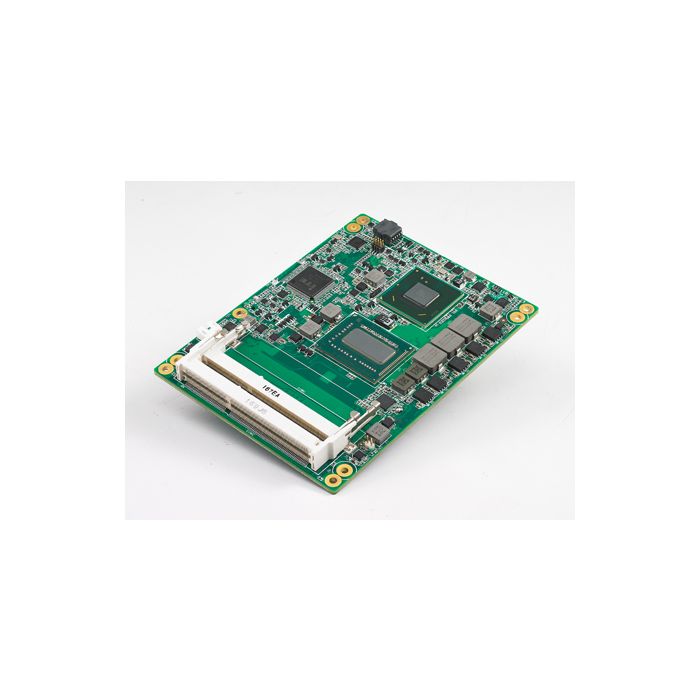

SOM-5892
SOM-5892
Advantech
3rd Gen Intel Core Processor COM Express Basic Module
COM Express Basic Type 6 provides triple DDI display interfaces, HDA, abundant super speed I/Os and high bandwidth expansion interfaces such as USB3.1, SATAIII and PEG/PCIe gen3. It comes with excellent computing and graphics performance.
For other specifications and customisation options, please see datasheet
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | COM Express 2.0 Basic Module |
| Sub Category | Type 6 |
| Supply Voltage |
ATX (12 V, 5 Vsb)
AT (12 V) |
| CPU | i7-3615QE |
| Frequency | 1333/1600 MHz |
| USB 3.0 | 4 Ports |
| USB 2.0 | 8 Ports |
| COM Port | 2 Ports |
| Graphics Controller | Intel Gfx Engine |
| Audio | HD Audio |
| Pin Out Type | Type 6 Pin-out |
| Base Frequency | 2.3 GHz |
| Core/Thread | 4C |
| LLC | 6 MB |
| System Chipset | Intel QM77 |
| BIOS | AMI EFI 64Mb |
| EEC Support | ECC is supported with specific SKU |
| Max Memory Capacity | 16GB |
| Memory Socket | Dual 204P SODIMM |
| VGA | 2048 x 1536 |
| LCD | Single and dual channel 18/24-bit LVDS |
| Multiple Display | 3 independent displays: VGA, LVDS, DVI, HDMI, DisplayPort |
| PCI Express x16 | PEG x16 |
| PCI Express x1 | 7 PCIe x1 |
| Gigabit Ethernet |
Controller: Intel 82579LM
Speed: 10/100/1000 Mbps |
| SATA | 2 x SATAIII (6.0 Gb/s), 2 x SATAII (3.0 Gb/s) |
| GPIO | 8-bit GPIO |
| TPM | Optional |
| Power Type | ATX, AT |
| Power Consumption (Max) | i7-3615QE w/ DDR3 16 GB: 41.8 W @ 12 V |
| Power Consumption (Idle) | i7-3616QE w/ DDR3 16 GB: 5.4 W @ 12 V |
| DDI | 3 ports support HDMI, DVI, DisplayPort |
| Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Memory | DDR3/L |
| Watchdog | 65536 level, 0 ~ 65535 sec |
| Product Type | COM Express Basic |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 125 x 95 mm |
