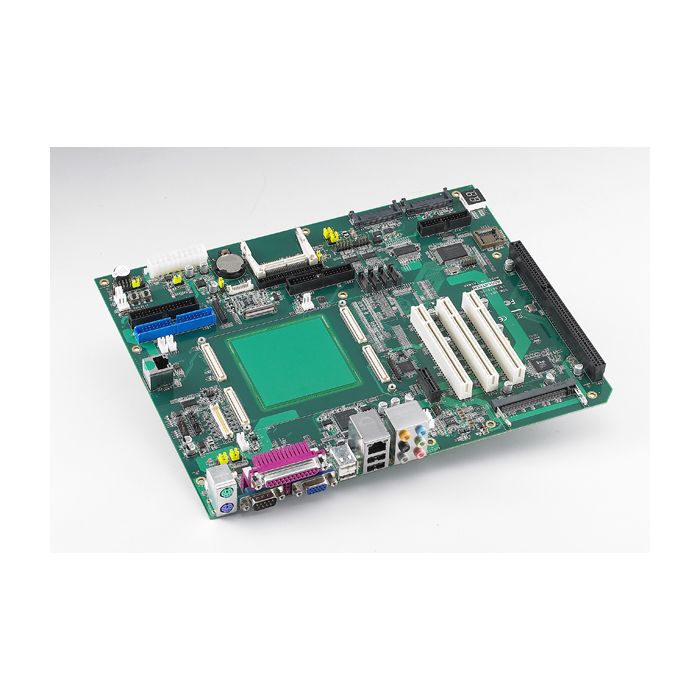

SOM-DB4700
SOM-DB4700
Advantech
Development Board for ETX Modules
Advantech Development boards provide a schematic software and reference design to reduce efforts needed in development stage. Advantech Development Board can be used to test carrier board problems and support COM series, RTX, SMARC, Qseven, and ETX / XTX form factors.
For other specifications and customisation options, please see datasheet
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | ETX |
| USB 2.0 | 4 Ports |
| COM Port |
4 COM ports
3 x RS-232, 1 x RS-232/422/485 |
| VGA | 1 |
| LCD | TTL/LVDS (depends on CPU module) |
| Multiple Display | TTL/LVDS, VGA, TV out |
| Mini PCI | 1 Port |
| PCI Slot | 3 Ports |
| SMBus | Yes |
| I²C Bus | Yes |
| Gigabit Ethernet | 1 x 10/100 |
| IDE | 1 x 40 pin + 1 x 44 pin |
| LPT/Floppy | 1 |
| Keyboard & Mouse | 1 |
| Fan | 2 |
| Port 80 | 1 |
| Power Type | ATX mode |
| Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Product Type | Development Board |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 304.8 x 190.5 mm |
