SOM-DB5720
SOM-DB5720
Advantech

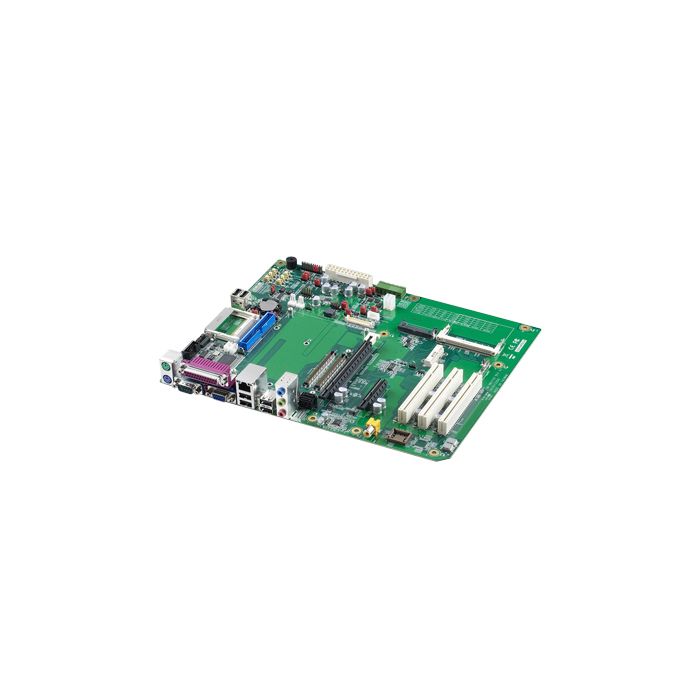

Development Board for COM Express R2.1 Type 2 / 1 Modules
Advantech Development boards provide a schematic software and reference design to reduce efforts needed in development stage. Advantech Development Board can be used to test carrier board problems and support COM series, RTX, SMARC, Qseven, and ETX / XTX form factors.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | Advantech COM Express Basic/Compact/Mini Module |
| USB 2.0 | 8 Ports |
| COM Port | 2 Ports |
| HDMI | Up to 2 ports (expand by SOM-EA20 through PCIe x16 slot) |
| Mini PCIe | 1 Port |
| Audio | Line-in, Line-out, MIC, SPDIF (Realtek ALC892) |
| Pin Out Type | Type 1/2 Pin-out |
| VGA | 1 (D-SUB 15P Female) |
| LCD | LVDS: 18/24-bit single or dual channe |
| SDVO | Up to 2 ports (expand by ADD2 Card through PCIe x16 slot) |
| DP++ | Up to 2 ports (expand by SOM-EA20 through PCIe x16 slot) |
| PCI Express x16 | 1 PCIe x16 |
| PCI Express x4 | 1 PCIe x4 |
| PCI Express x1 | 4 PCIe x1 (expand by SOM-EA10 through PCIe x4 slot) |
| Mini PCI | 1 Port |
| PCI Slot | 3 Ports |
| LPC | Yes |
| SMBus | Yes |
| I²C Bus | Yes |
| Gigabit Ethernet | 1 Giga LAN |
| SATA | 4 (Type B) |
| IDE | 1 |
| USB Client | 1 Port |
| GPIO | 8 |
| LPT/Floppy | 1 (D-SUB 25P) |
| Keyboard & Mouse | 1 |
| Express Card | Yes |
| TPM | 1 |
| Fan | 2 |
| Port 80 | 1 |
| Power Type | ATX/AT modes |
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
| Product Type | Development Board |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 304.8 x 244 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
