SOM-2532
SOM-2532
Advantech
Intel Atom x6000, Pentium and Celeron x6000 Series Processor SMARC Module

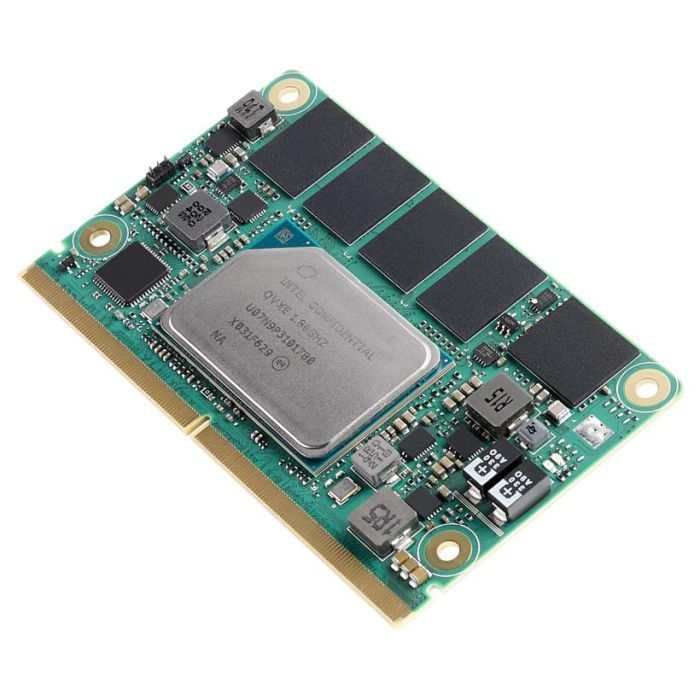

SMARC is a small form factor that connects to carrier board by golden finger. It supports low power and wide range computing performance in two module size (82x50mm/82x80mm); also comes with onboard memory and storage.
For other specifications and customisation options, please see datasheet
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | SMARC2.1.1 |
| Supply Voltage |
Vin: 4.75-5.25V
RTC Battery: 2.0V ~ 3.3V |
| USB 3.2 Gen2 (type A) | 2.0000 |
| CPU | Atom X6425E |
| USB 2.0 | 6 Ports (480 Mbps) |
| COM Port | 4 Ports (2 Ports 4-wire / 2 Ports 2-wire) |
| Graphics Controller | Intel UHD Graphics |
| HDMI | 1 Port HDMI 1.4b: Up to 3840 x 2160 @ 30 Hz, DP 1.2: Up to 4096 x 2160 @ 60 Hz (Optional) |
| Audio | Intel HD Audio/ up to 2 I2S |
| PCB Size | 82 x 50 mm |
| Base Frequency | 2.0 GHz |
| Burst Frequency | 3.0 GHz |
| Core/Thread | 4 |
| Cache | 1.5MB L2 Cache |
| CPU TDP | 12W |
| IBECC | Yes |
| BIOS | AMI UEFI 256Mbit |
| Speed | 3200MT/s, Up to 4267MT/s by Specific SPU SKUs |
| EEC Support | IBECC supported by Specific CPU SKUs |
| Max Memory Capacity | Max. 16GB |
| Memory Socket | Dual channel / Memory down |
| LCD | 1 Port LVDS: 1920 x 1200 @ 60Hz/eDP: 4096 x 2160 @ 60Hz (Optional: MIPI-DSI, only support under Windows) |
| DP++ | 1 Port (up to 4096 x 2160 @ 60 Hz) |
| Multiple Display | Triple Simultaneous Independent Display |
| PCI Express x1 | 4 PCIex1 (PCIe2 colay SERDES 1, PCIe3 colay SERDES 0 by BOM option) |
| eSPI | eSPI |
| SMBus | N/A |
| I²C Bus | Yes |
| Gigabit Ethernet | 2 Ports Marvell 88E1512 (10/100/1000BASE-T), Support TSN by Specific CPU SKUs |
| SATA3.0 | 1 Port (6 Gbps) |
| SPI Bus | Yes. For BIOS EEPROM and TPM |
| GPIO | 14-bit |
| TPM | Yes |
| Smart Fan | N/A |
| Onboard Storage | eMMC 32GB |
| Power Type | ATX/ATX: Vin |
| Power Consumption (Max) |
24.107 W (PTU turbo CPU + GPU100%)
15.723 W (Burn-in) |
| Power Consumption (Idle) | 4.013 W |
| Vibration Resistance | 3.5 Grms |
| Graphics Frequency | 500 MHz |
| Graphics Memory | 750 MHz |
| 2D/3D/HW Acceleration | OpenGL* 4.5, DirectX* 12, OpenCL*1.2, Vulkan 1.1 |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Operating Temperature |
Standard: 0 ~ 60 °C (32 ~ 140 °F)
Extended: -40 ~ 85 °C (-40 ~ 185 °F) |
| Memory | LPDDR4 |
| Watchdog | 65536 level, 0 ~ 65535 sec |
| Product Type | SMARC |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 82 x 50 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
