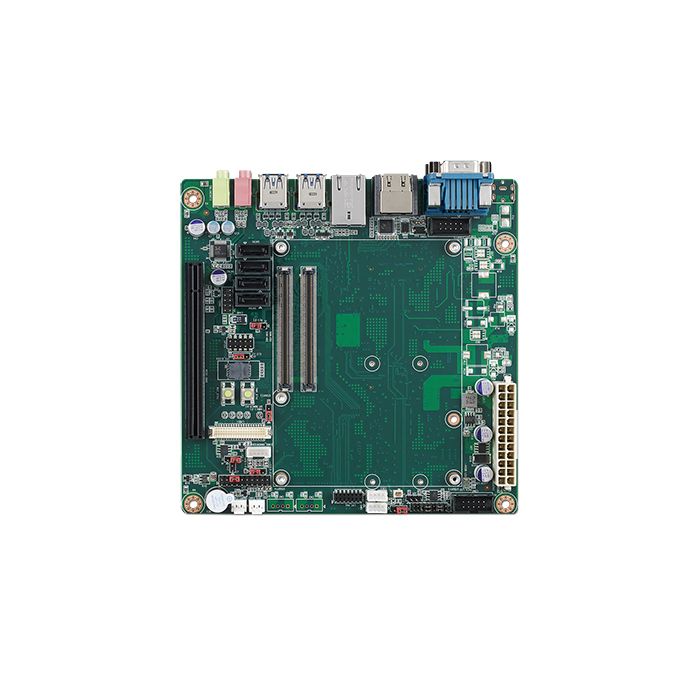

Extended Temp. Mini-ITX Application Board for COM Express R2.1 Type 6 Modules

Advantech Application Board is application-oriented development board which provides a schematic reference to reduce design effort at the development stage.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • Mini-ITX form factor with slim type I/O connector under 25.4mm
  • Compatible to COM Express Basic/Compact with Type 6 pin-out module
  • Supports Wide-range operating temperature from -40 to +85 degree
  • Supports Standard ATX Power or DC-in 19V
  • Supports VGA, 2xHDMI, PCIe x16, mini-PCIe, SATA, and USB3.0
Form Factor COM Express Basic / Compact Module
Supply Voltage ATX SKU: Vin: 12V±5%, 5V±5%, 3.3V±5% VSB: 5V±5%
DC-in SKU: VDC-in: 19V±5%
RJ45 1.0000
USB 3.0 4
USB 2.0 2
COM Port 2, COM1: RS-232, COM2: RS-232/422/485
HDMI 2
Mini PCIe 2 (include PCIe x1 & USB2.0)
Audio Support Line-out(L/R), MIC (Realtek ALC892)
Pin Out Type Type 6 pin-out Compatible
VGA 1
LCD 2-CH 18/24-bit LVDS (optional 4-Lane eDP)
PCI Express x16 ATX SKU: 1 PCIe x16, DC SKU: 1 PCIe x1
LPC Yes
SMBus Yes
I²C Bus Yes
Gigabit Ethernet Speed: 10/100/1000Mbps
SATA ATX SKU: 4, DC SKU: 2
SPI Bus Yes
GPIO 8
Smart Fan 1, support 12V fan only
Power Type ATX SKU: ATX, DC-in SKU: DC-in 19V
Vibration Resistance 3.5 Grms
Storage Temperature -40 ~ 85° C (-40 ~ 185° F)
Operating Temperature 0 ~ 60° C (32 ~ 140° F)
Watchdog 1
Product Type Application Board
Humidity Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing
Dimensions 170 x 170 mm
